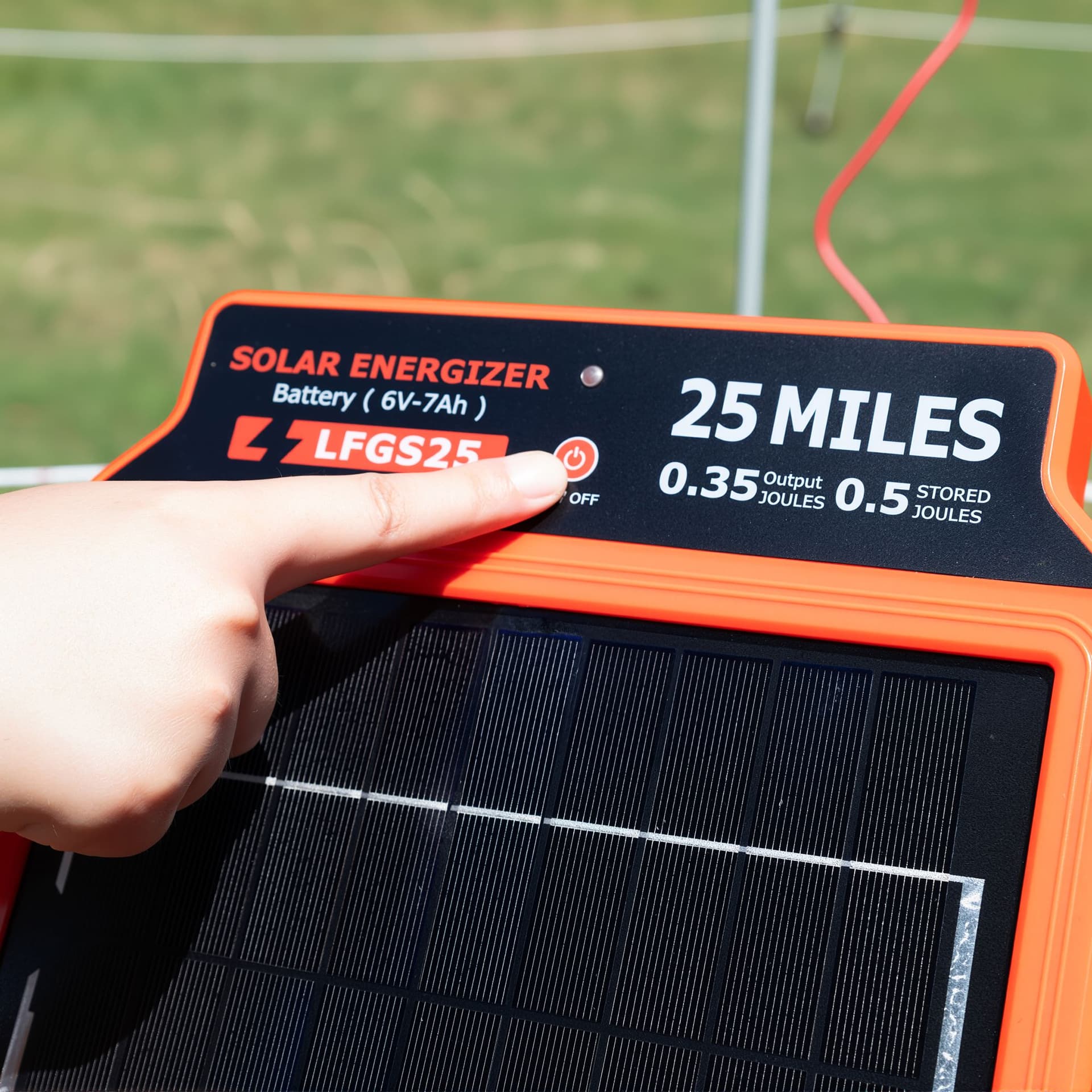

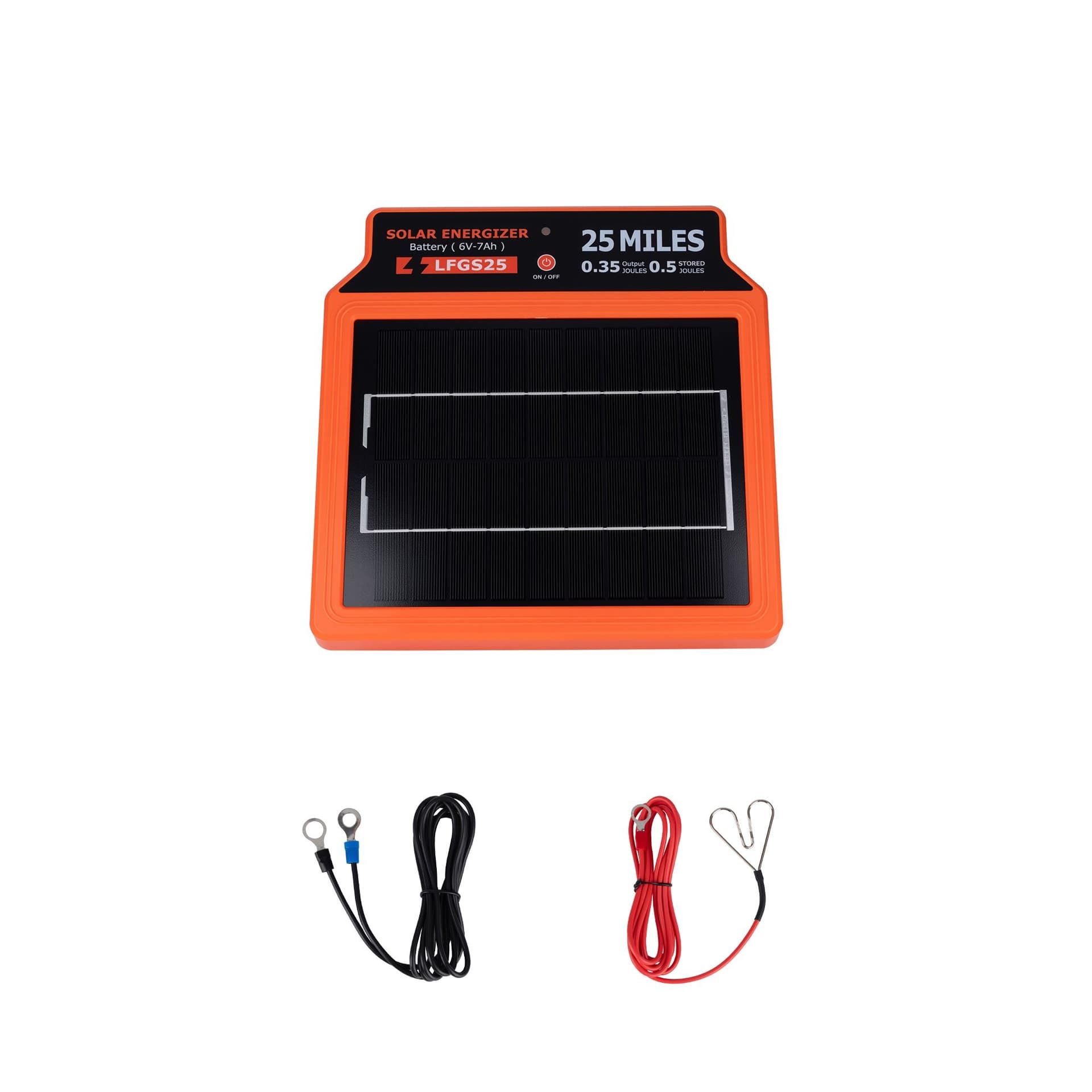

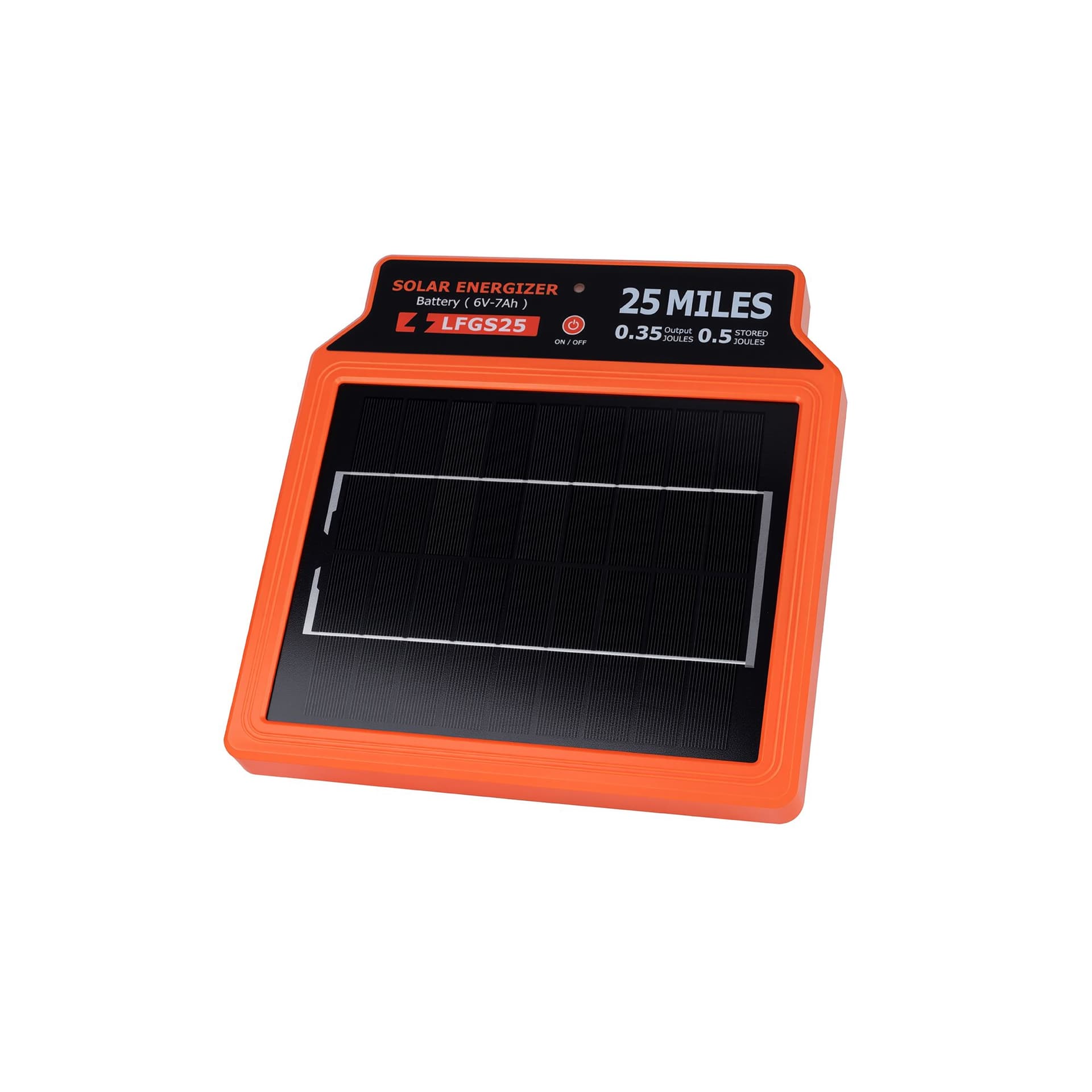

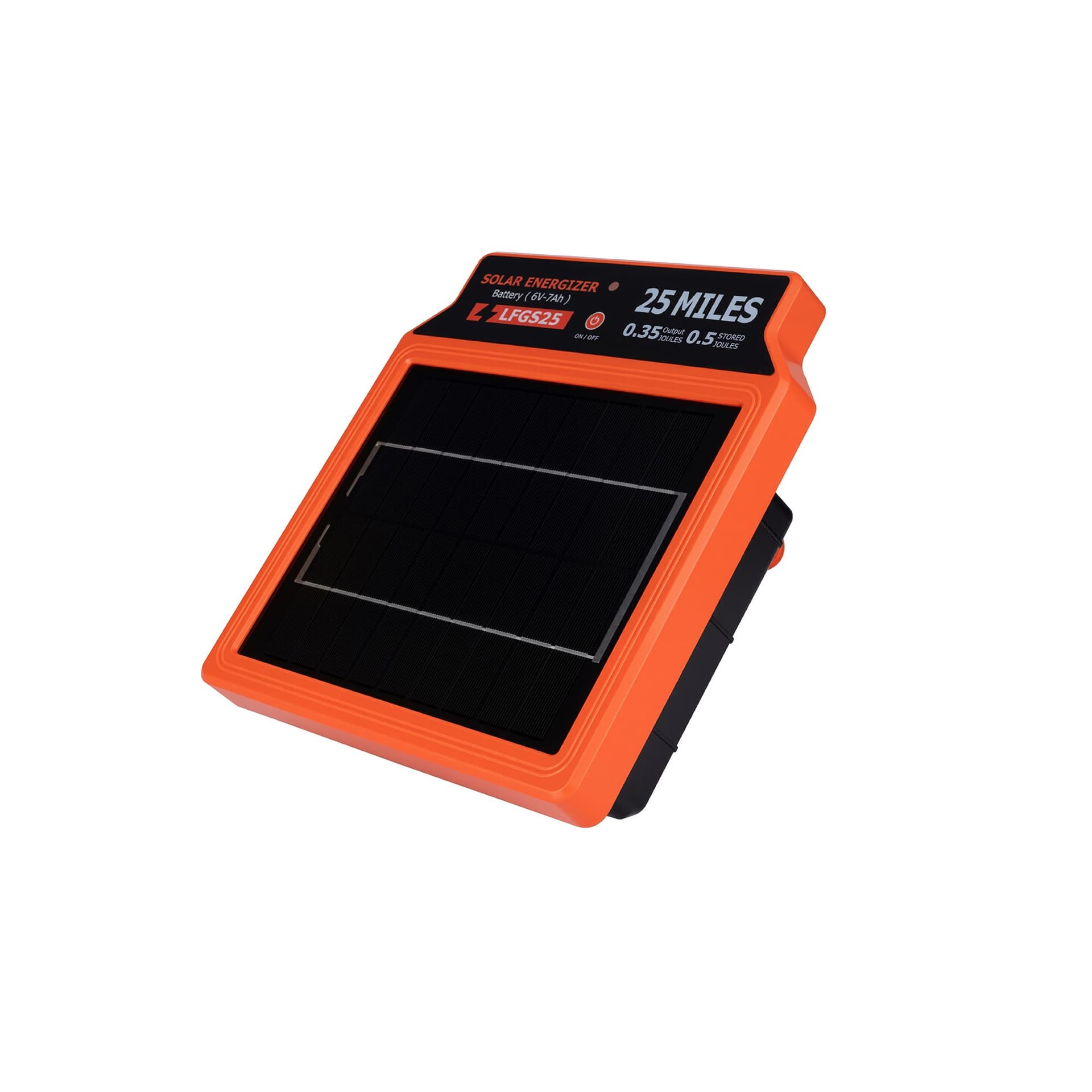

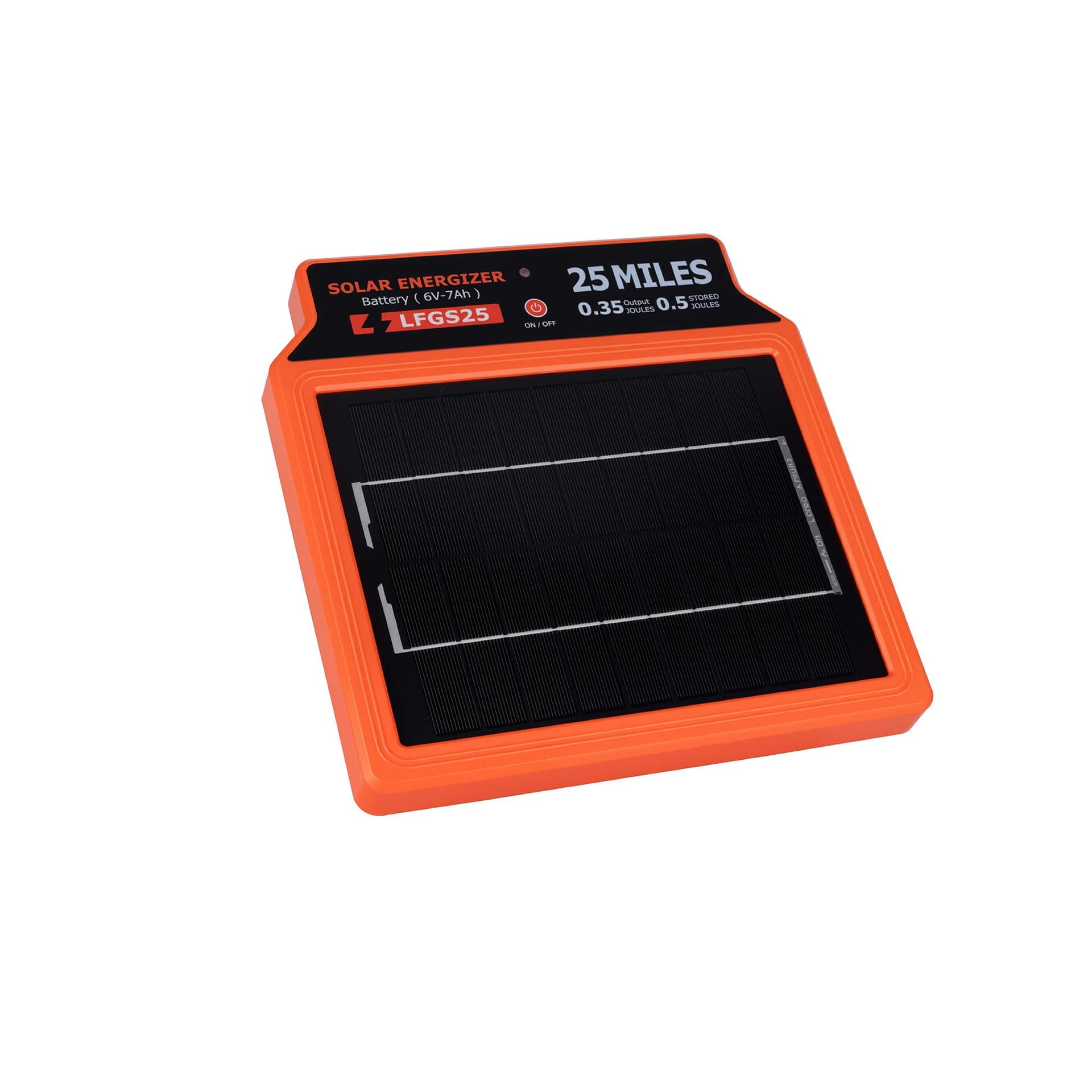

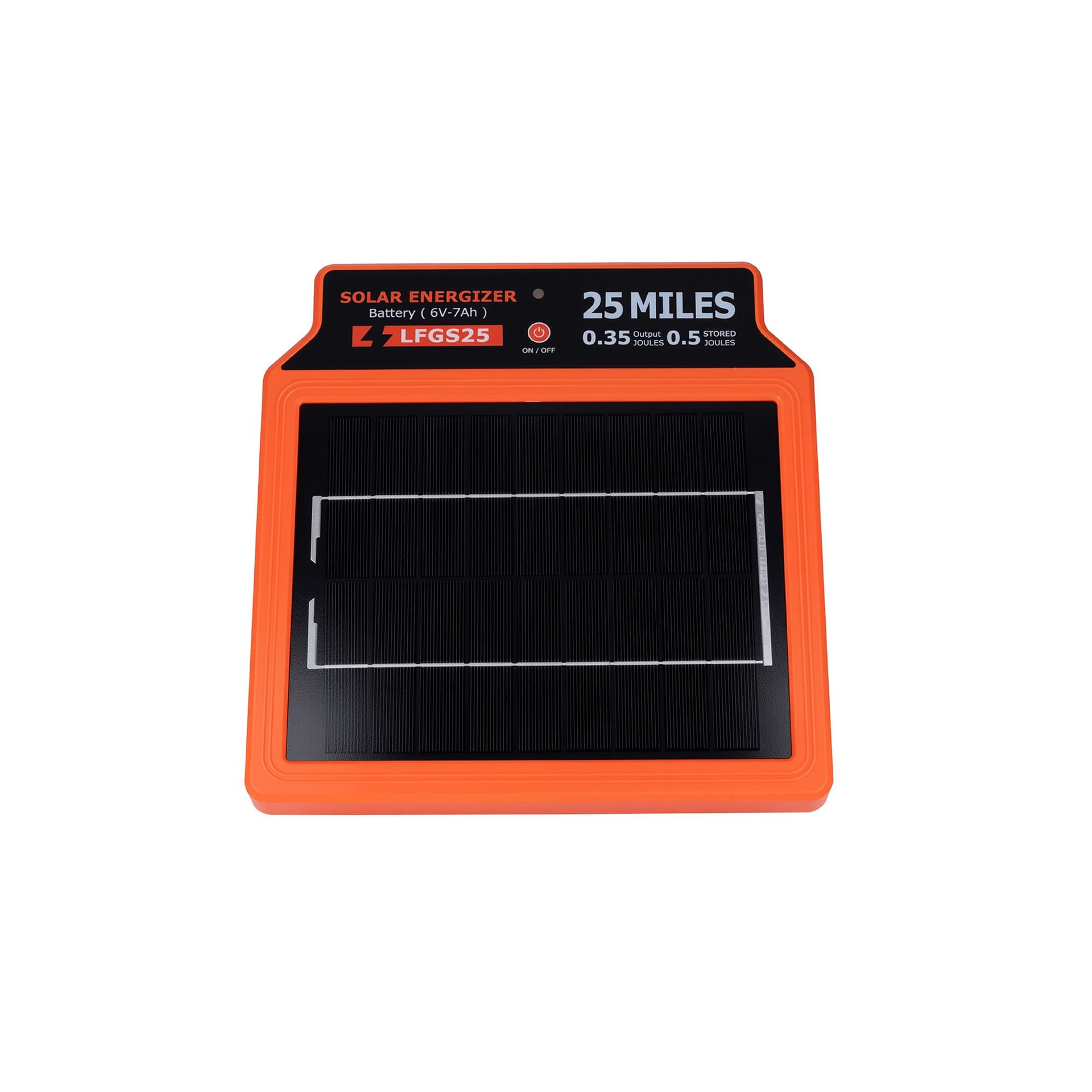

Lydite® Energizer “LFGS25”, 8kv 0.5J 25miles Solar Fence Energizer (built-in 6V lead-acid battery)
✓ Power supply: 3.2 Volts and solar ✓ Battery Type: 6V lead-acid battery ✓ Output voltage (no load): 7.2 kV ✓ Flame-retardant ABS ✓ Ati-UV
Product Model
LFGS25
Weight
2.742kg
Dimensions
26×26.5×14cm
Power supply
3.2 Volts and solar
Consumption
50mA
Output voltage (no load)
7.2 kV
Stored Energy
0.5 J
Peak Current
300 mA
Effective length
25 miles
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
gallery
Overview
DESCRIPTION
Compare
CHARACTERISTIC

banner 拷贝.jpg

DESCRIPTION

Any power source. Anywhere.

Power supply: 3.2 Volts and solar
Consumption: 50mA
Battery Type: 6V lead-acid battery
Output voltage (no load):7.2 kV
Stored Energy: 0.5 J
Average Current(day):80 mA
Peak Current:300 mA
Effective length: 25 miles
The lithium/lead-acid battery is removable.

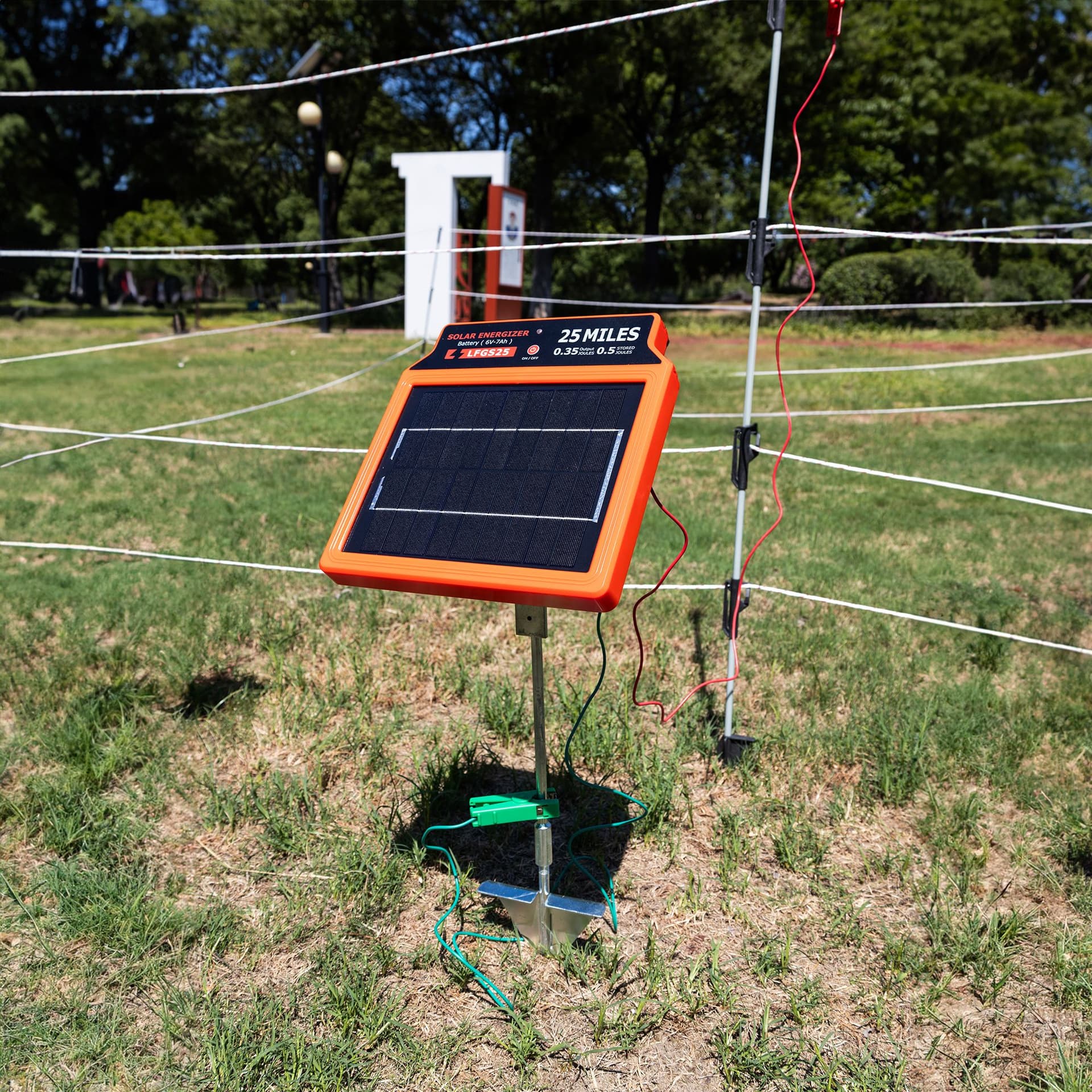

Watch this video to see how you can install the LFGS25 using a solar panel setup!

Compare

Specification

LFGS15

LFGS20

LFGS25

LFGS30

LFGS60

LFGS80

Battry Type

Lithium 3.2 v 6 Ah

Lithium 3.2 v 6 Ah

6 V Battery

Lithium 3.2 v 12 Ah

Lithium 3.2 v 12 Ah

Lithium 3.2 v 24 Ah

Output Voltage (no load)

9.3 KV

9.2 KV

7.2 KV

9.3 KV

9.0 KV

9.0 KV

Stored Energy

0.15 J

0.22 J

0.5 J

0.3 J

0.6 J

0.8 J

Average Current (day)

56 mA

67 mA

80 mA

100 mA

300 mA

400 mA

Peak Current

310 mA

326 mA

300 mA

275 mA

350 mA

450 mA

Dimensions (H*W*D)

260*255*125 mm

260*255*125 mm

260*255*125 mm

260*255*125 mm

260*255*125 mm

260*255*125 mm

Weight(N.W.)

1.6 KG

1.6 KG

2.6 KG

1.75 KG

1.85 KG

2.2 KG

Multiwire Distance

5 Miles

12 Miles

25 Miles

20 Miles

27 Miles

30 Miles

CHARACTERISTIC

here is how you benefit from our energizer:

1 e2a45b56fd

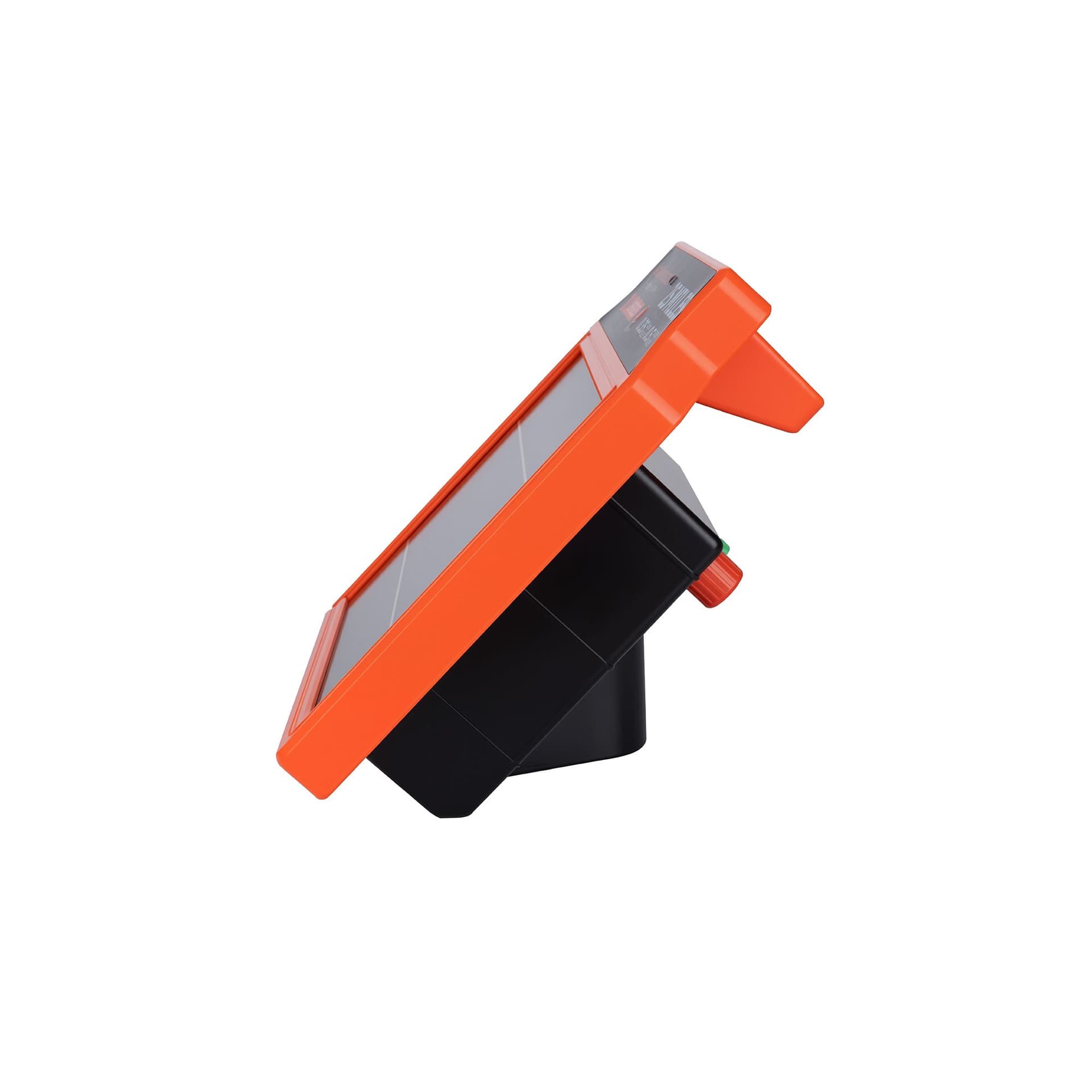

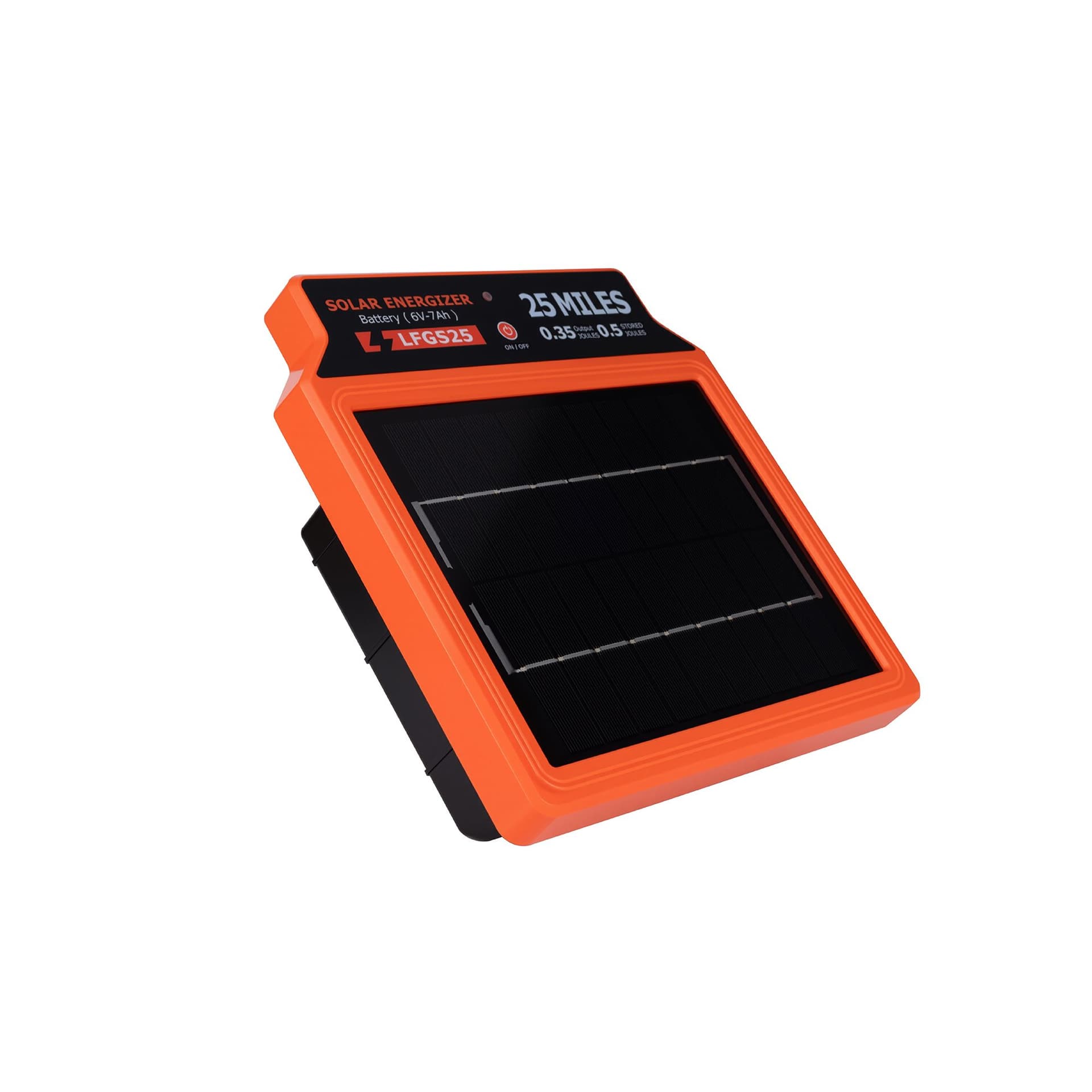

Integrated high-efficiency solar panel on top of the unit. No external solar panels required. Ready to use out of the box.

2 449cdb3661

Default: Lithium (LFGS15/25/30/80/90) or Lead-acid (LFGS60). Supports battery replacement. Long cycle life, safe and efficient.

3 8f14d2709d

Delivers reliable pulses even under heavy vegetation load. No-load output up to 9.3kV. Ensures fence voltage reaches the end of the wire.

4 394f4f8e71

Green flashing = working normally. Red steady = low battery. Red blinking = temperature protection (auto-recovery when cooled).

5 f5af071f1d

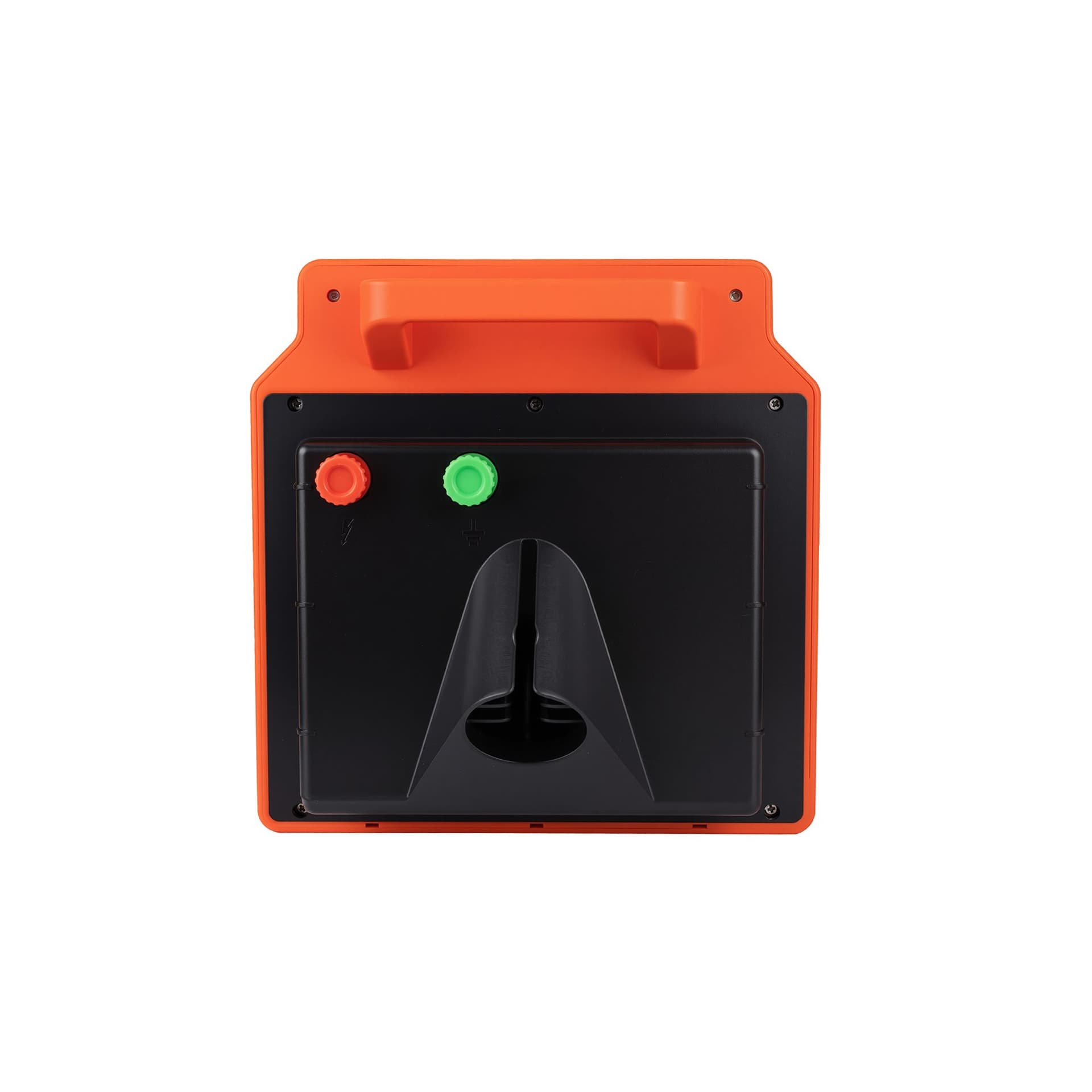

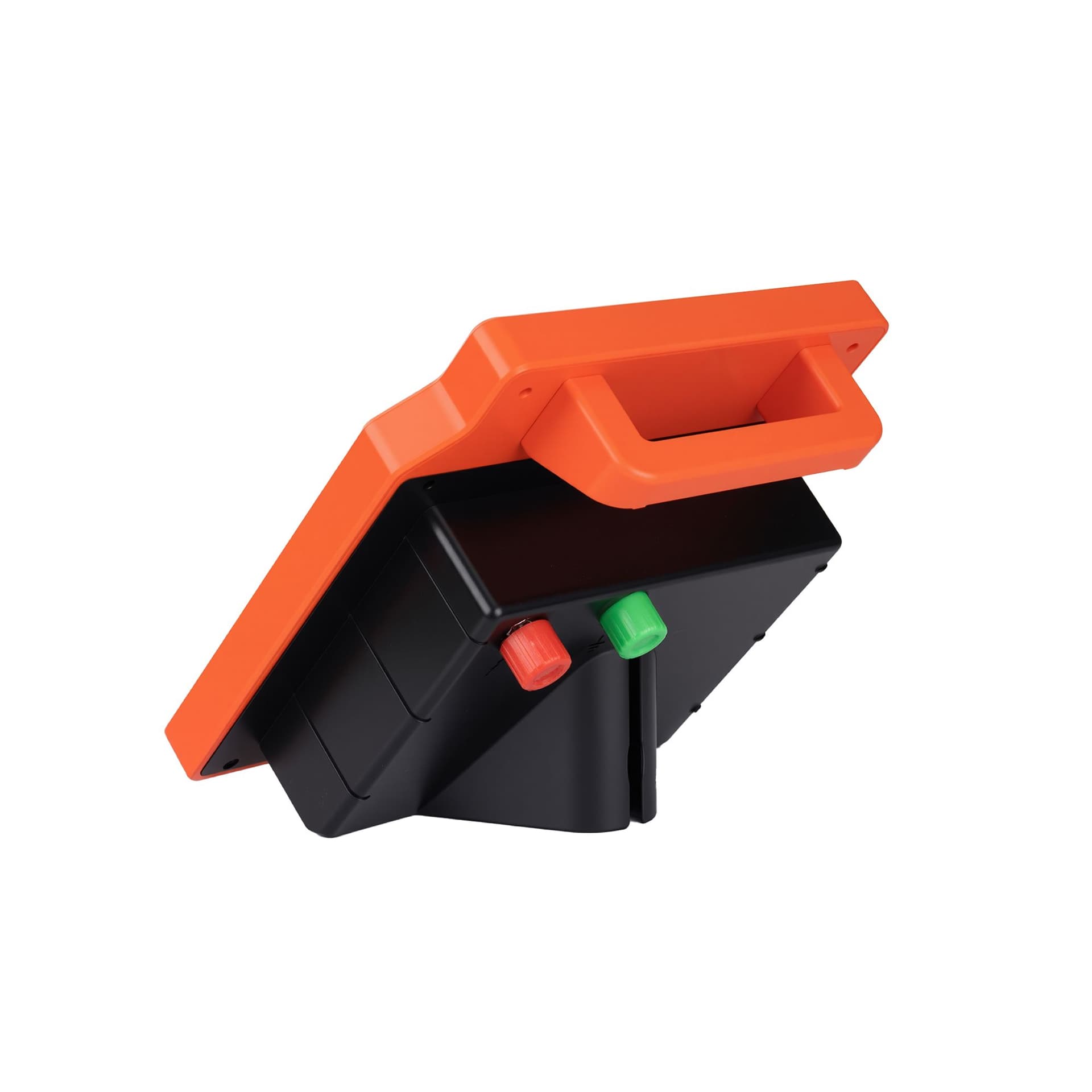

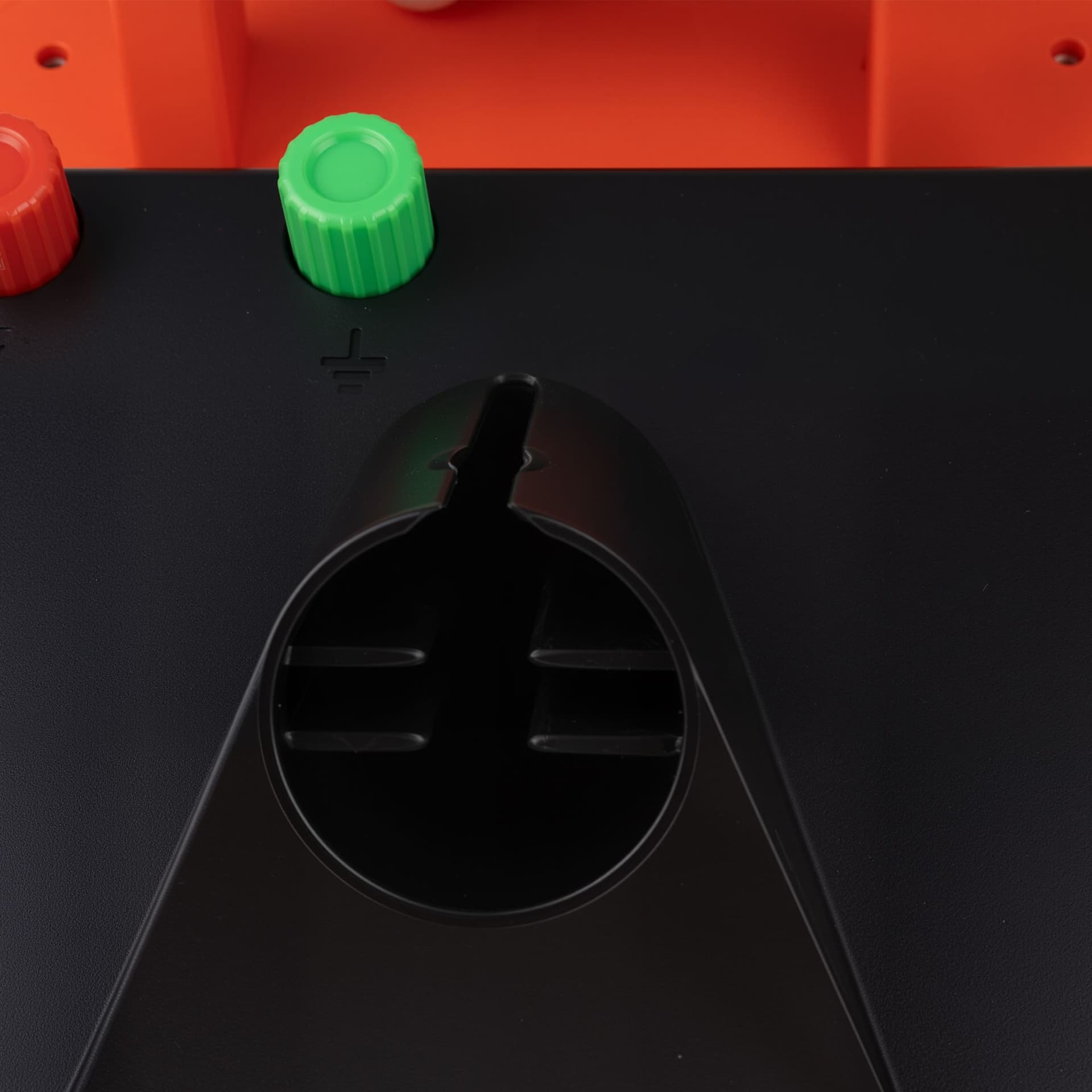

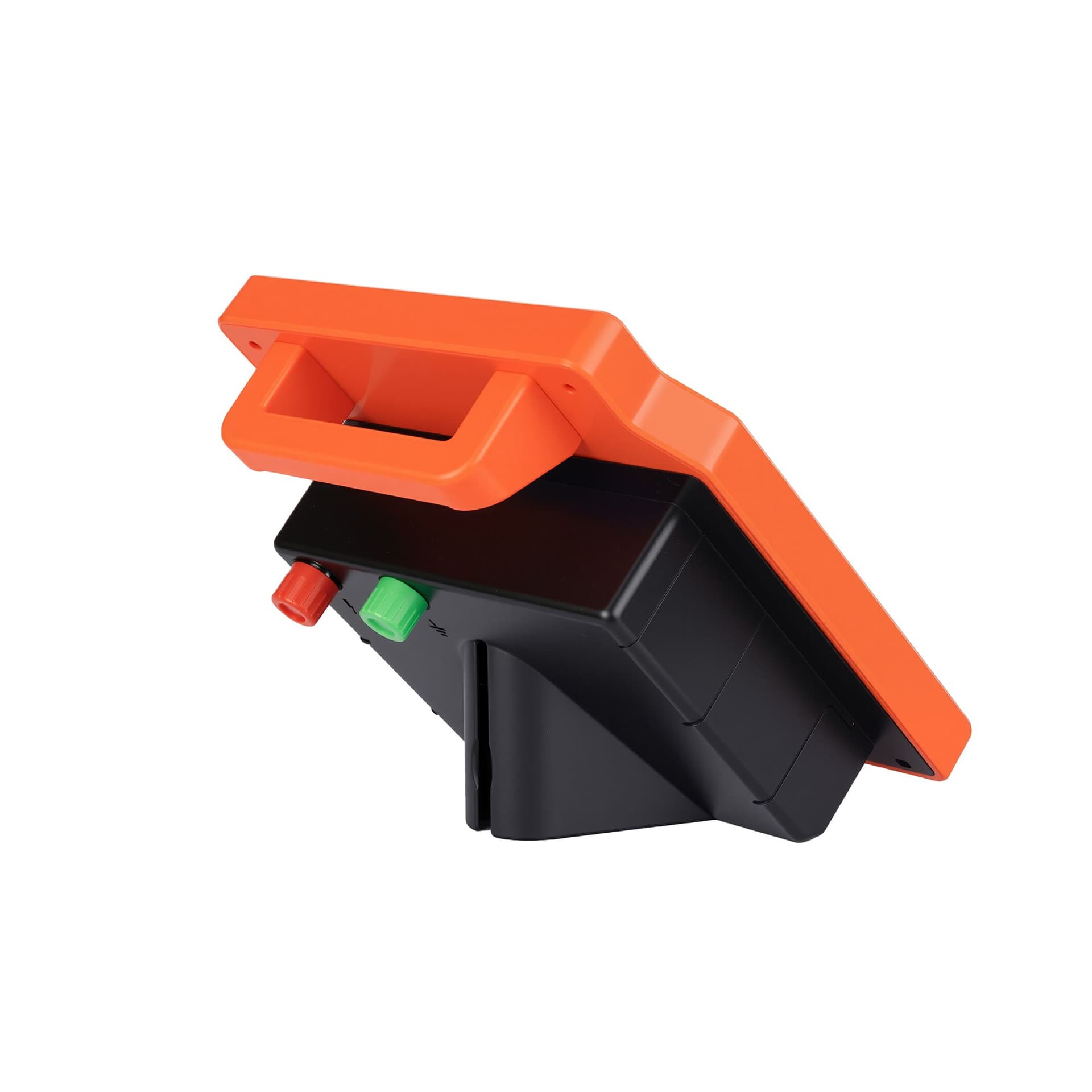

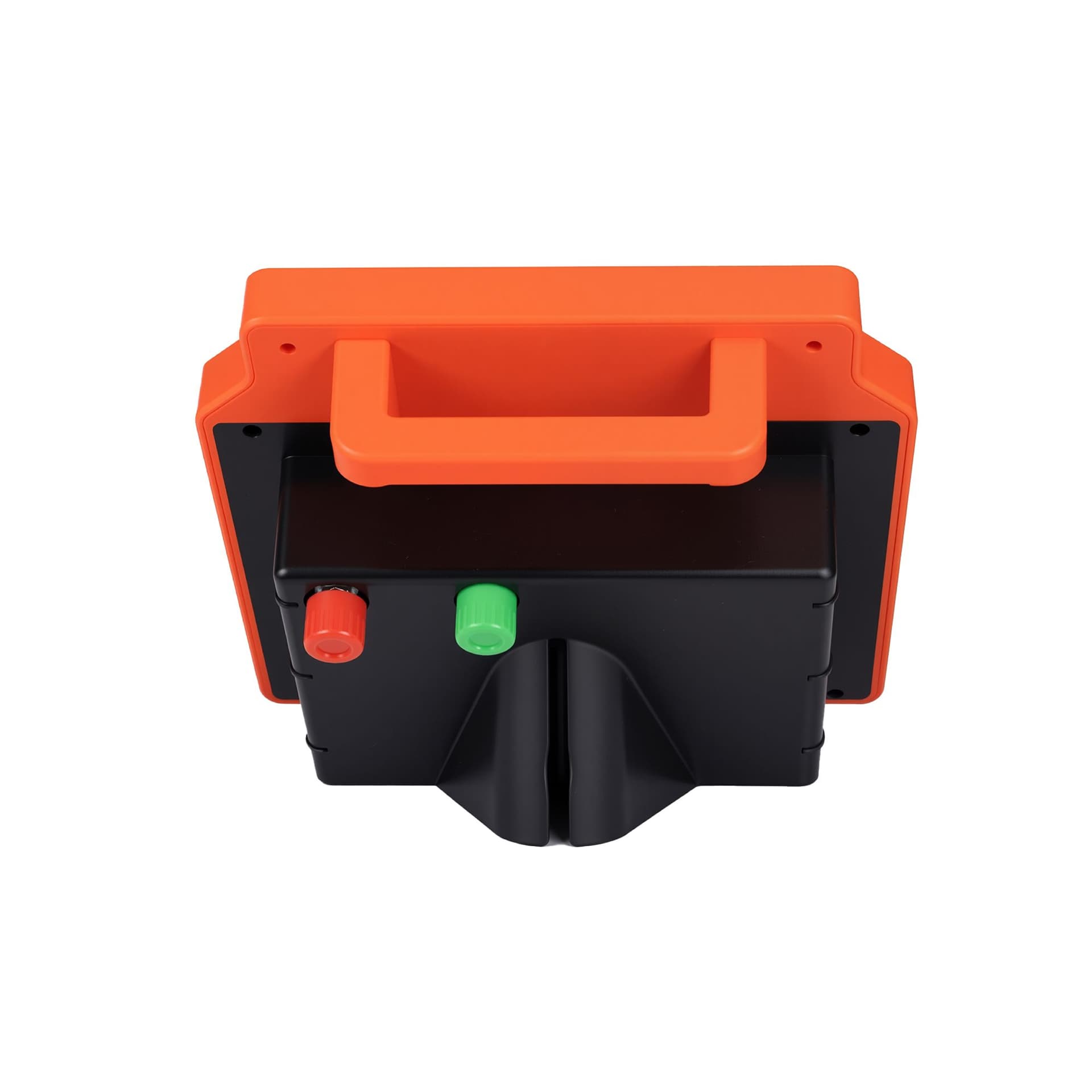

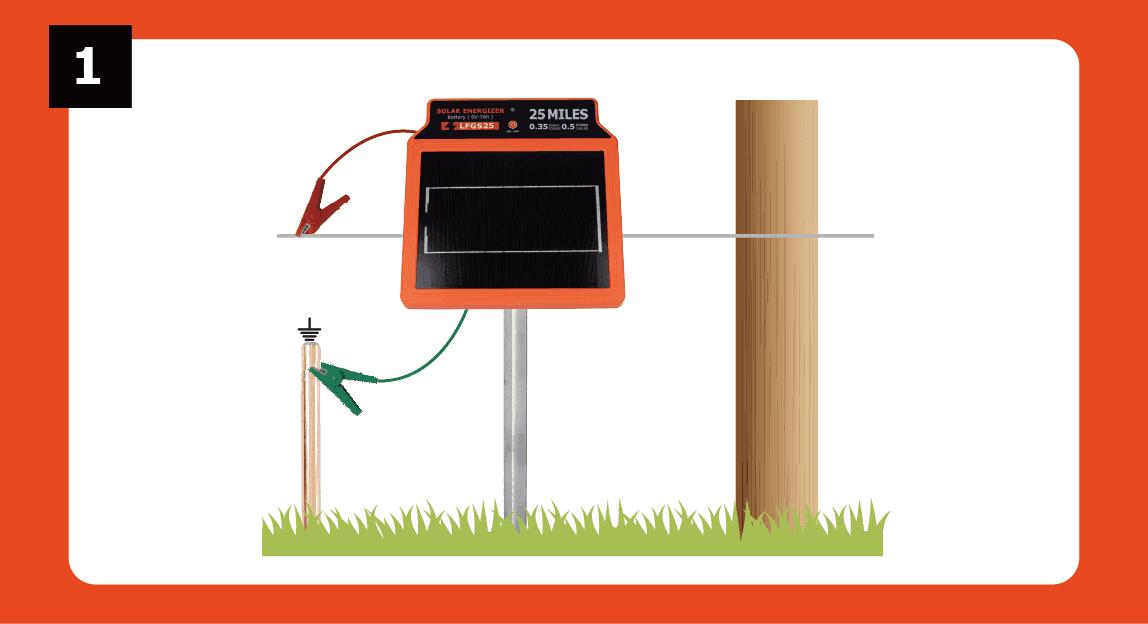

Front-mounted red & green terminals. Red to fence wire, green to ground rod (min. 60cm depth). Knob-type connection for secure installation.



6 8e388badb0

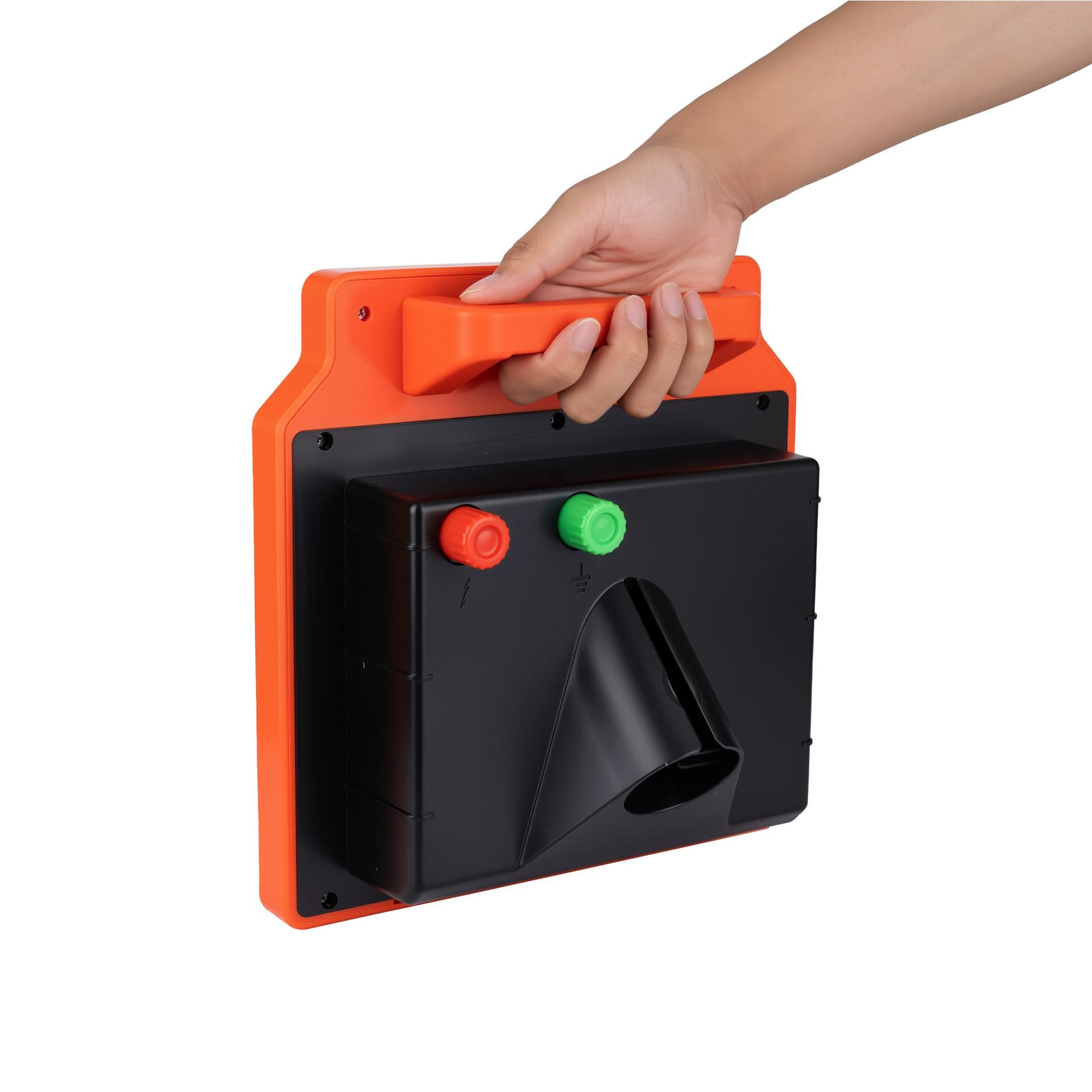

Weighs only 1.6–2.2kg depending on the model. Easily mounted on a post, wall, or bracket. Perfect for mobile or temporary fence applications.

Related Products
1 29 feffdbed0611 6845499a6e
Lydite® Energizer “ADS9000”, 9J 100Miles Solar Fence Energizer
ADS9000
✓ Fence up to 100 miles(150 km)without vegetation ✓ 9 Joules
1 29 2fbb94e2705 6c901599d6
Lydite® Energizer “ADS7000”, 7J 75Miles Solar Fence Energizer
ADS7000
✓ Fence up to 75 miles(120 km)without vegetation ✓ 7 Joules
1 01 df970309f32 7ae7d4a7a1
Lydite® Energizer “ADS5000”, 5J 62Miles Solar Fence Energizer
ADS5000
✓ Fence up to 62miles(100 km) without vegetation ✓ 5 Joules
1 20 3559f94f0c11 3 11ffa2ee2c
Lydite® Energizer “LFS020”, 0.3J 10miles Solar Fence Energizer
LFS020
✓ Fence up to 10 miles without vegetation ✓ 0.3 Joule
1 14 c9e4a948832 5 1af014f06f
Lydite® Energizer “LFR045”, 1J 30miles Solar Fence Energizer
LFR045
✓ Fence up to 30 miles without vegetation ✓ 1 Joule
1 14 55c2e5e5142 4 181f05a844
Lydite® Energizer “LFR035”, 0.5J 20miles Solar Fence Energizer
LFR035
✓ Fence up to 20 miles without vegetation ✓ 0.5 Joules
1 20 7b4734b0165 1 064387d634
Lydite® Energizer “LFS015”, 0.15J 5miles Solar Fence Energizer
LFS015
✓ Fence up to 5 miles without vegetation ✓ 0.15 Joules
1 04 4a51d016042 6e17ae718f
Lydite® Energizer “LFR050 Pro”, 1J 30Miles Solar Fence Energizer
LFR050 Pro
✓ Fence up to 30 miles without vegetation ✓ 1 Joule
1 04 0834b5950e14 c165a3b1e4
Lydite® Energizer “LFR050”, 0.5J 20Miles Solar Fence Energizer
LFR050
✓ Fence up to 20 miles without vegetation ✓ 0.5 Joules
1 cc0c6282832 a53a8c3619

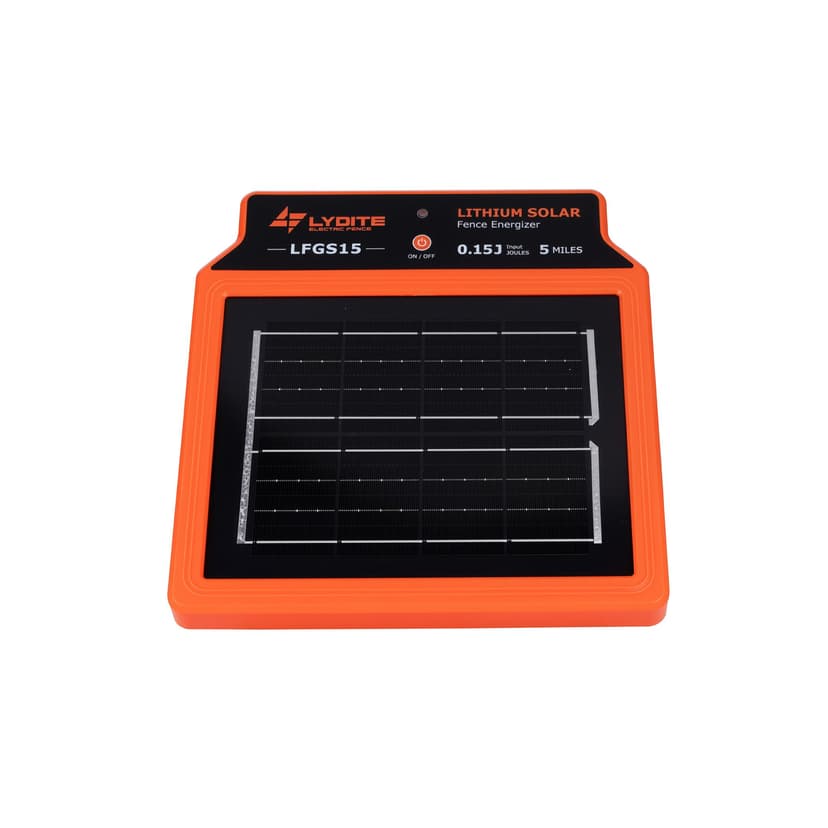

Lydite® Energizer “LFGS15”, 7.5kv 0.15J 5miles Solar Fence Energizer(Built-in 3.2V 6AH lithium battery)
