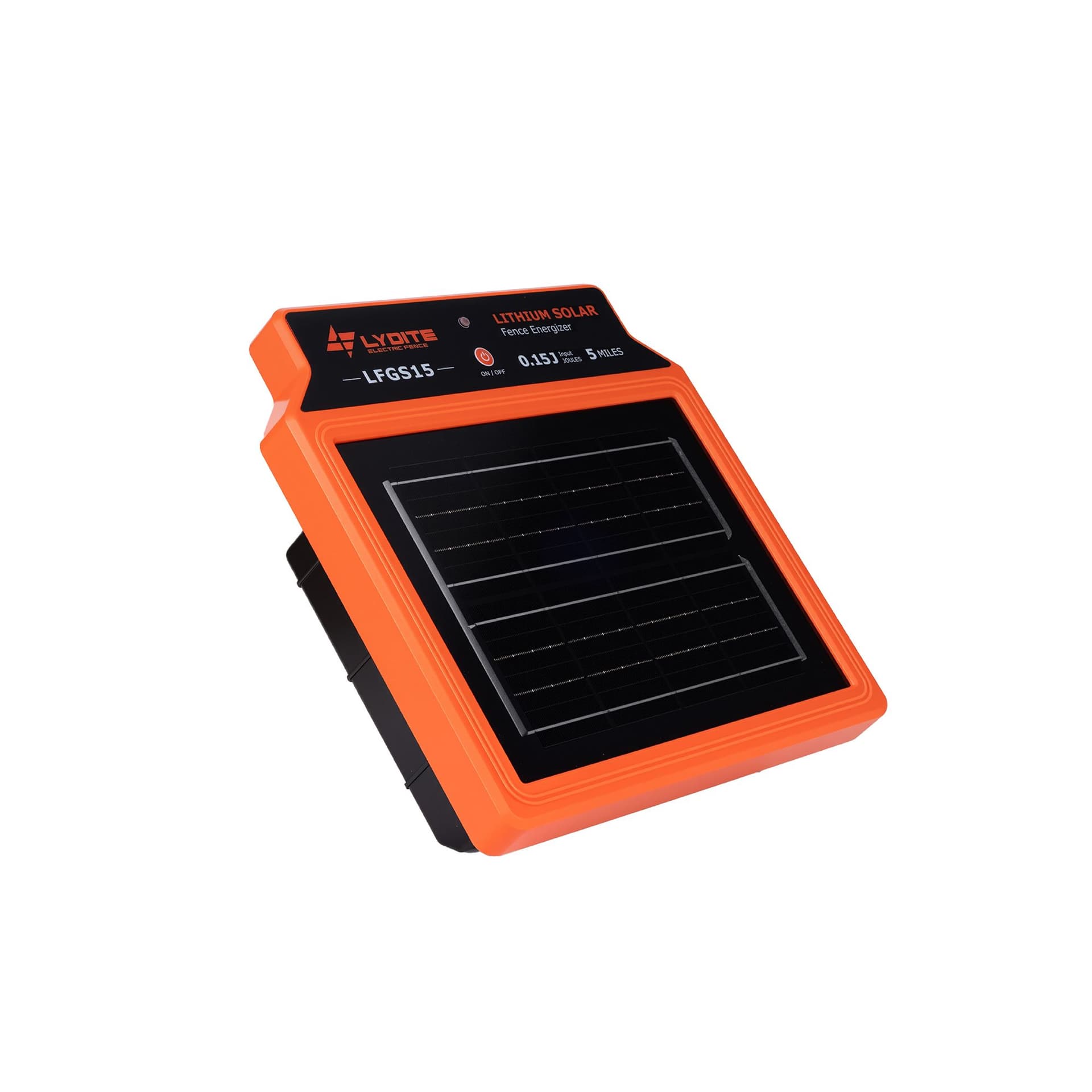

Any power source. Anywhere.
Power supply: 3.2 Volts and solar
Consumption: 50mA
Battery Type:Lithium,3.2 V 6AH
Output voltage (no load): 9.3 kV
Stored Energy: 0.15 J
Average Current(day):56mA
Peak Current:310 mA
Effective length: 5 miles

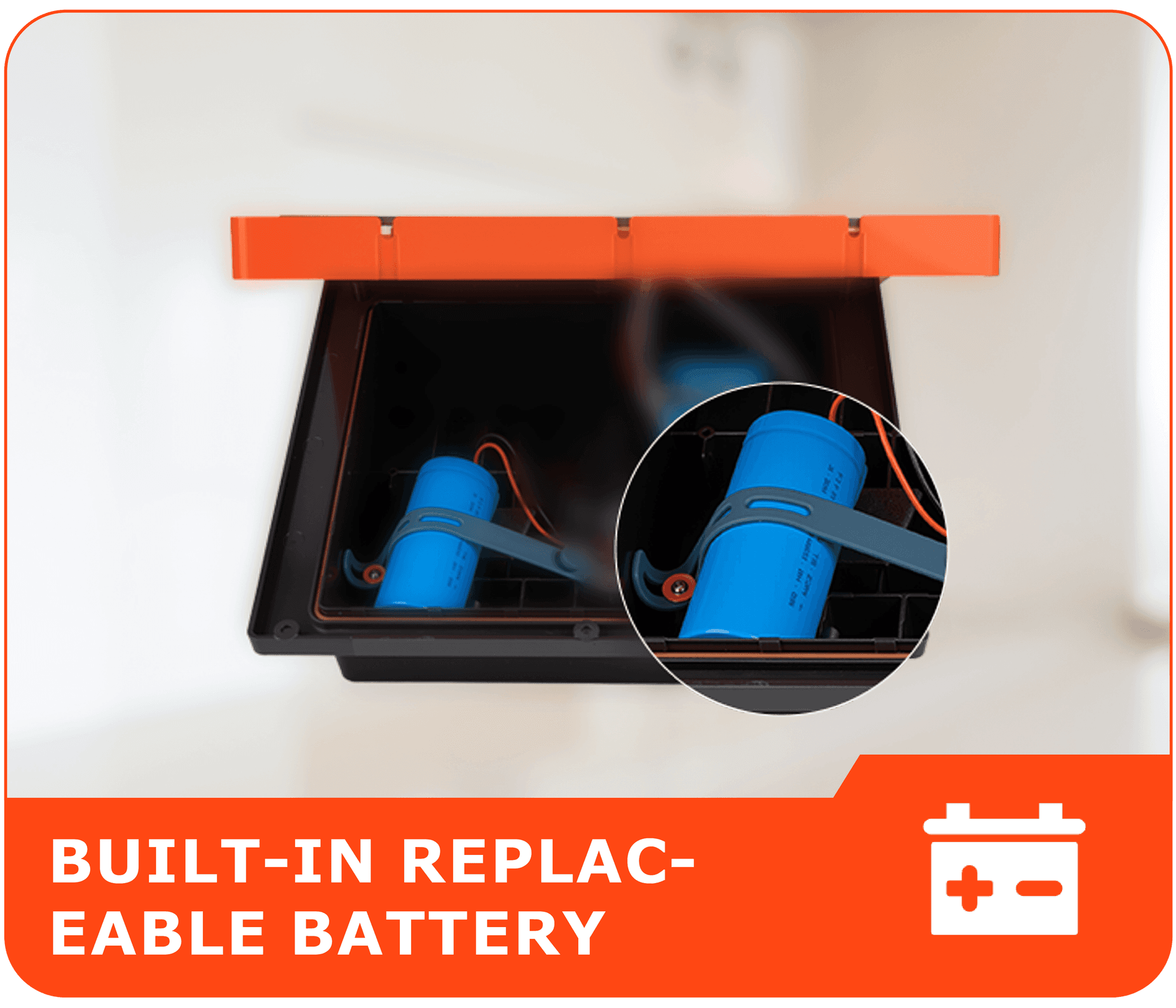

The lithium/lead-acid battery is removable.
Watch this video to see how you can install the LFGS15 using a solar panel setup!
here is how you benefit from our energizer:

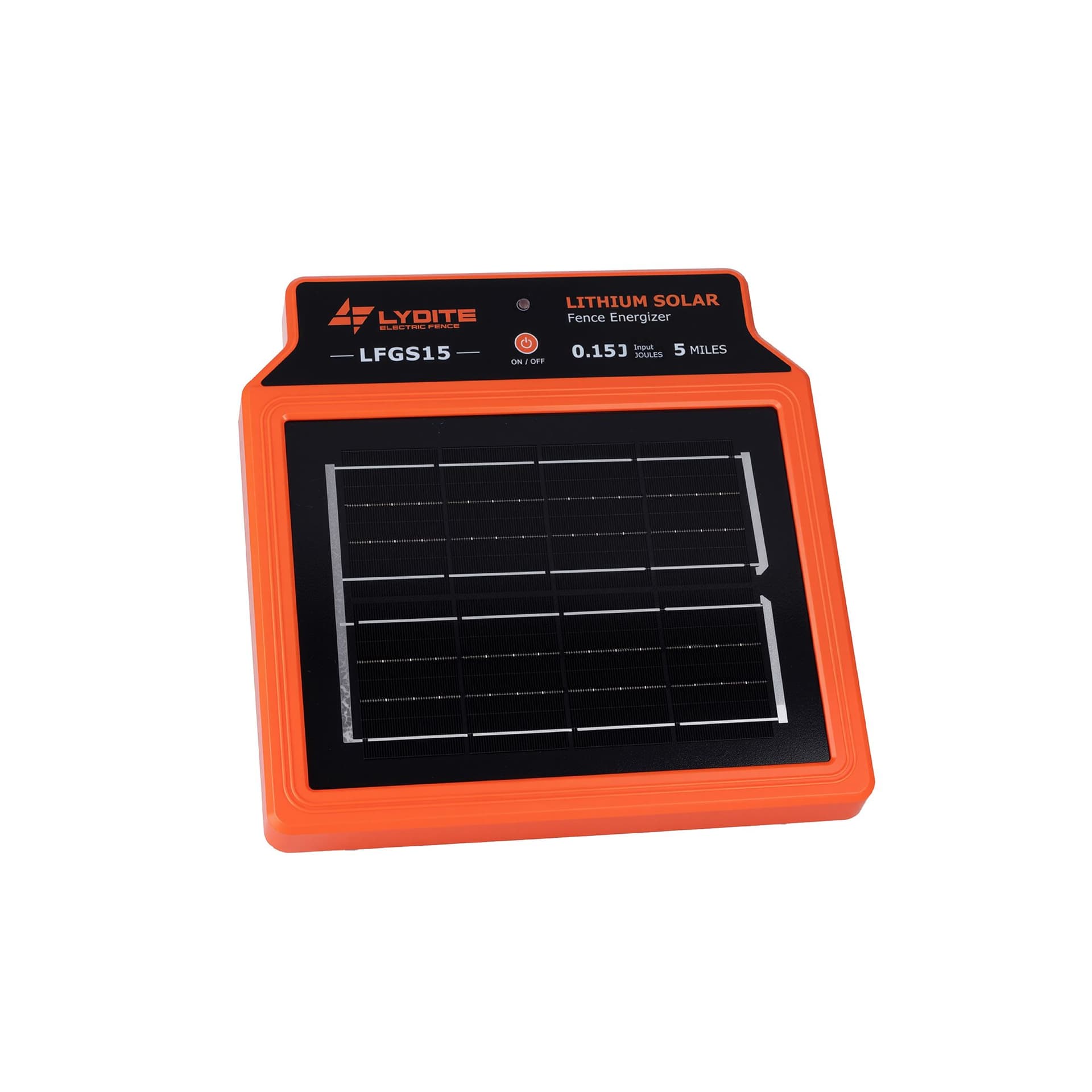

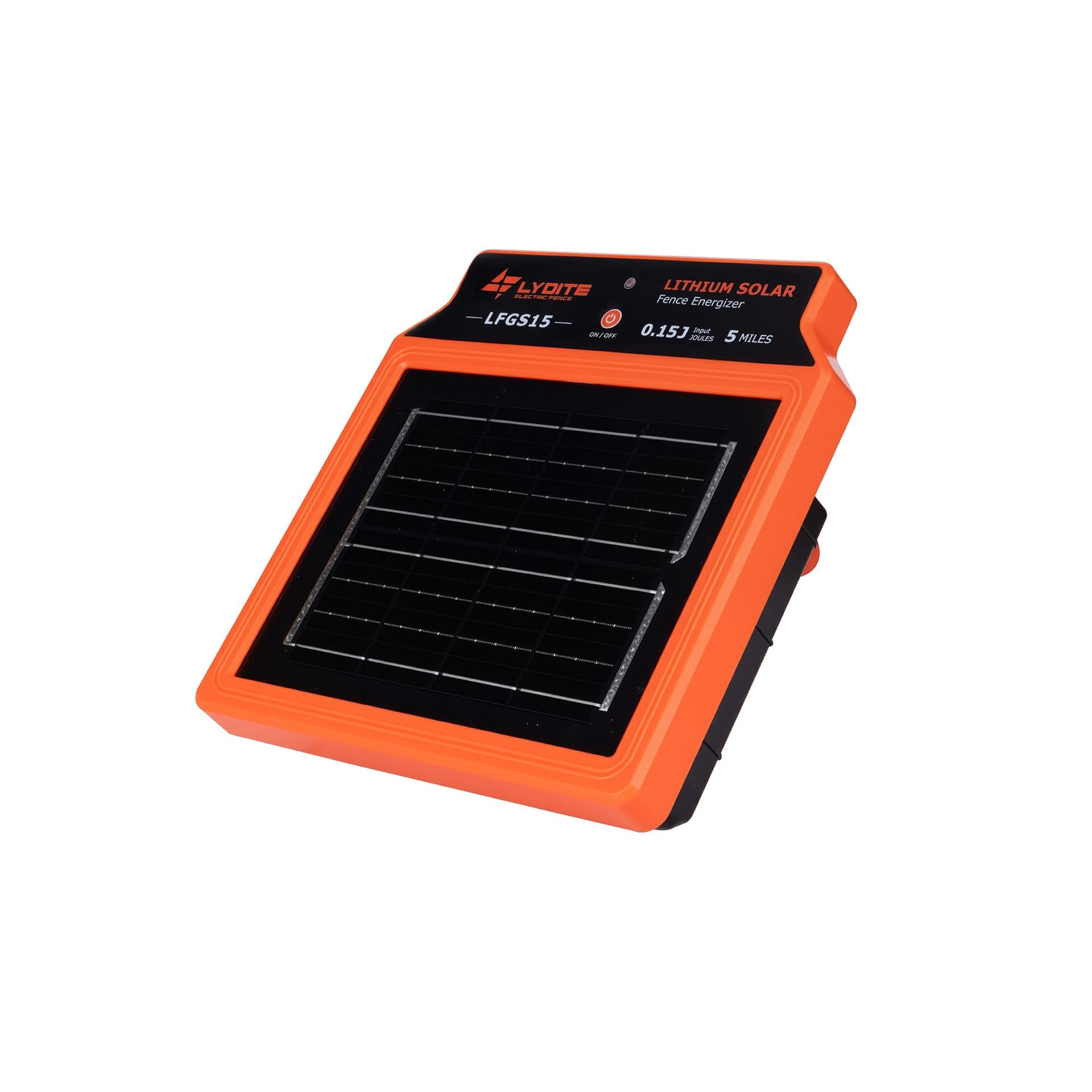

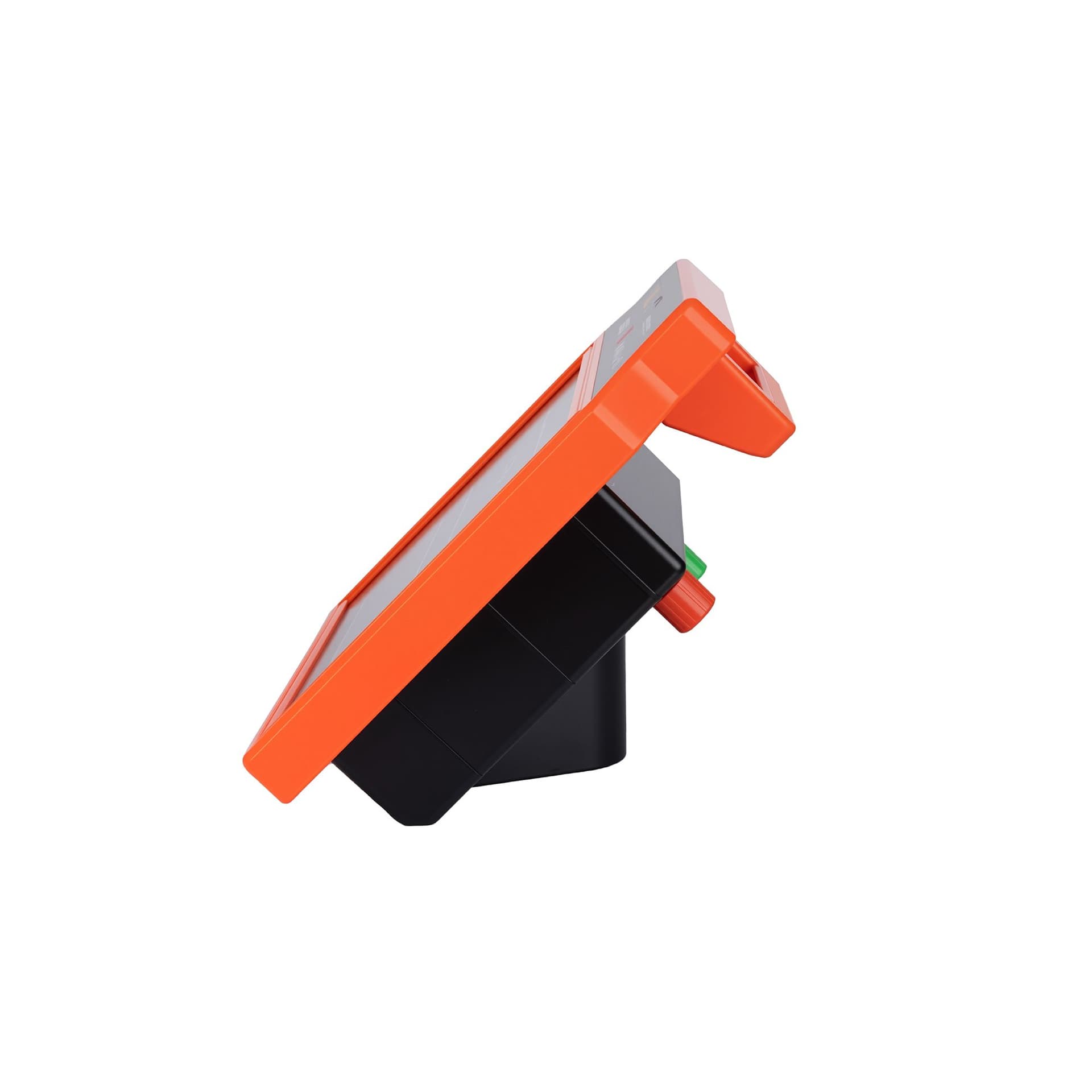

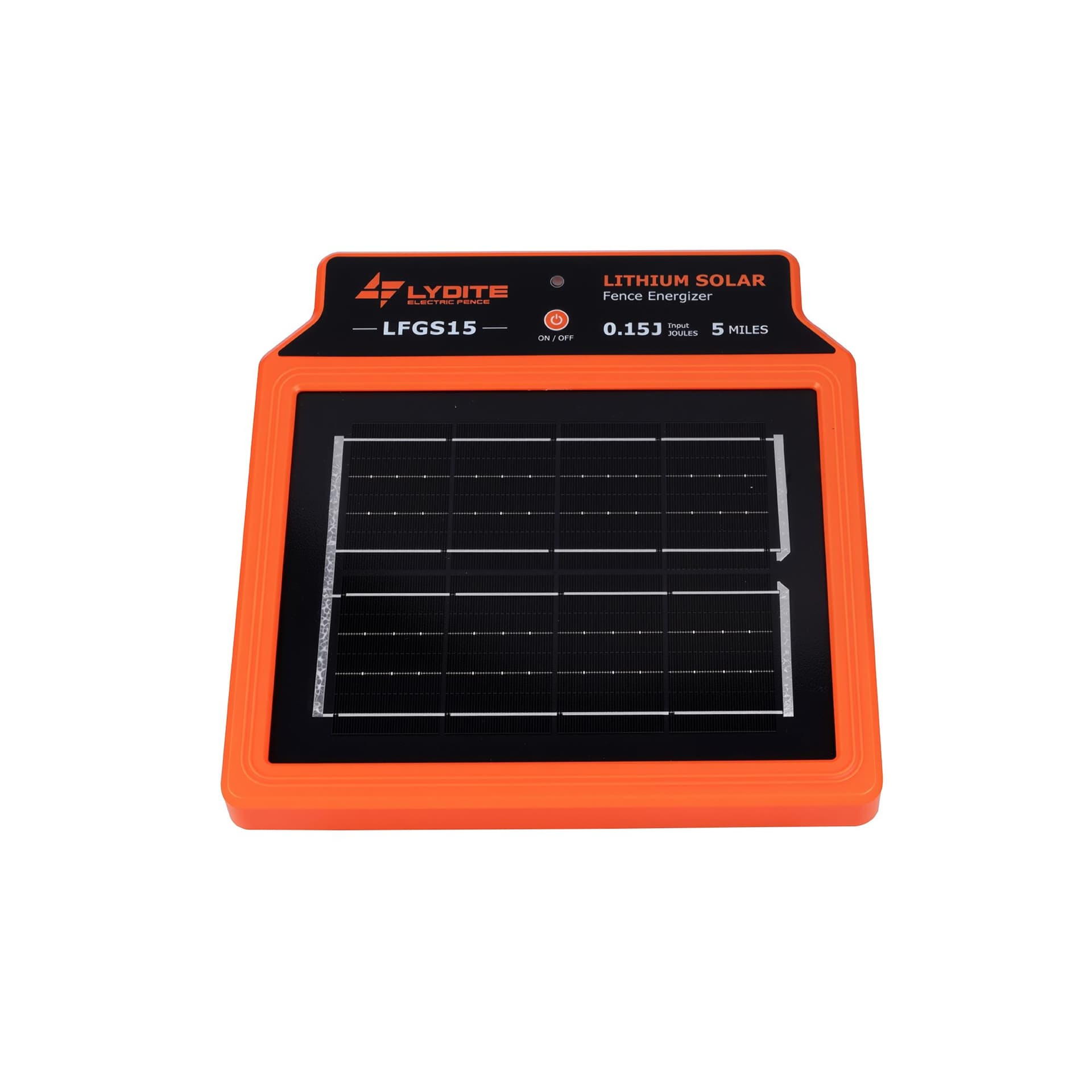

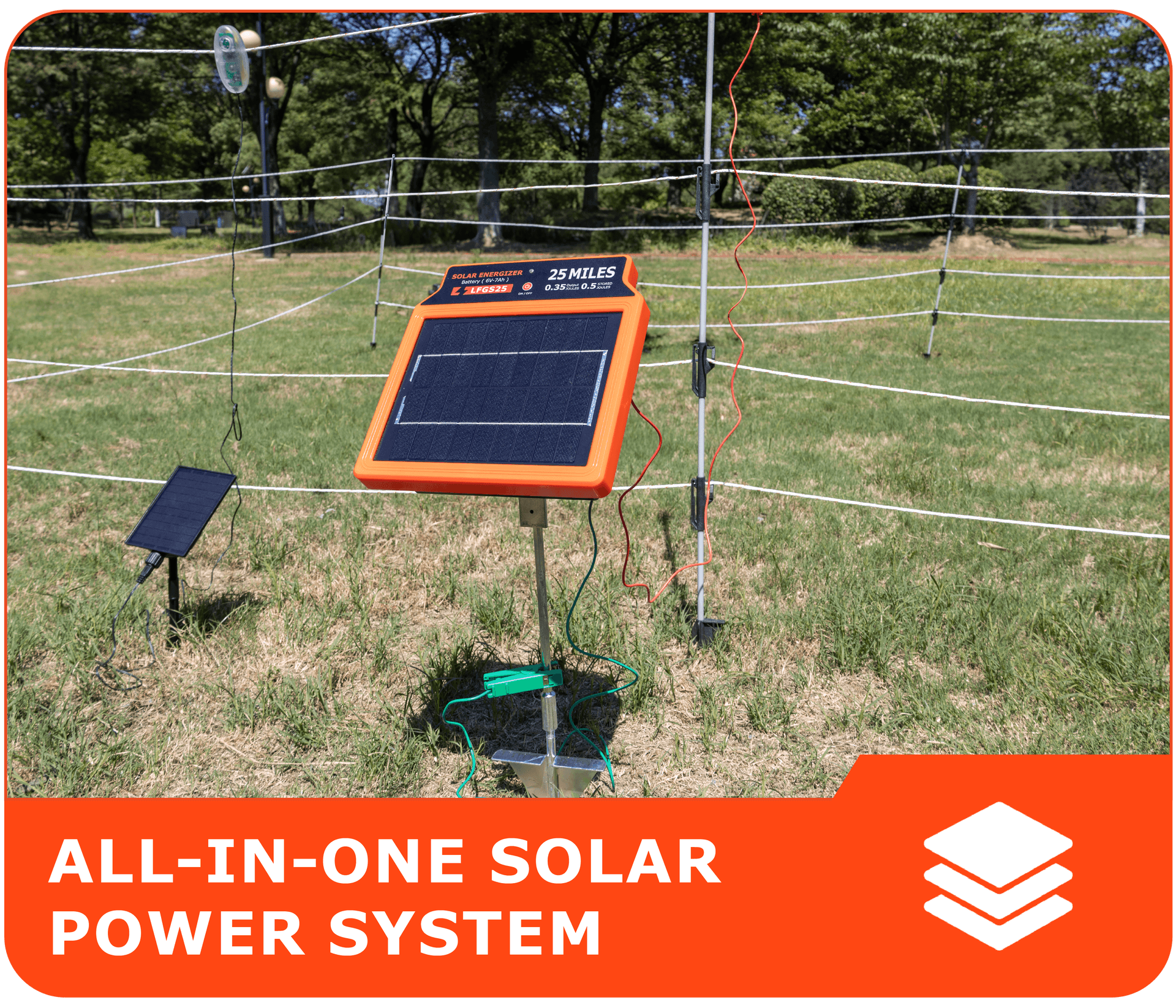

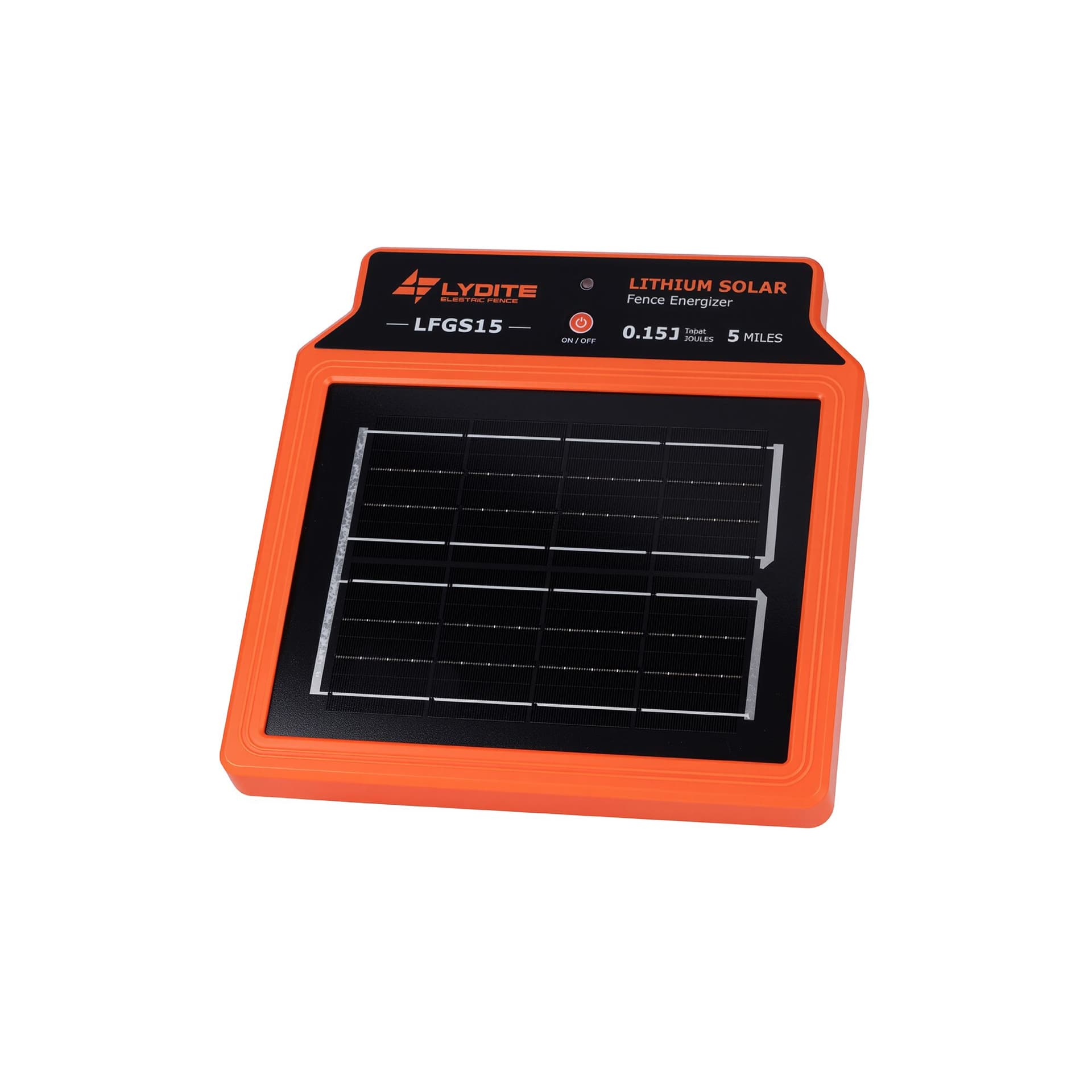

Integrated high-efficiency solar panel on top of the unit. No external solar panels required. Ready to use out of the box.
Default: Lithium (LFGS15/25/30/80/90) or Lead-acid (LFGS60). Supports battery replacement. Long cycle life, safe and efficient.
Delivers reliable pulses even under heavy vegetation load. No-load output up to 9.3kV. Ensures fence voltage reaches the end of the wire.

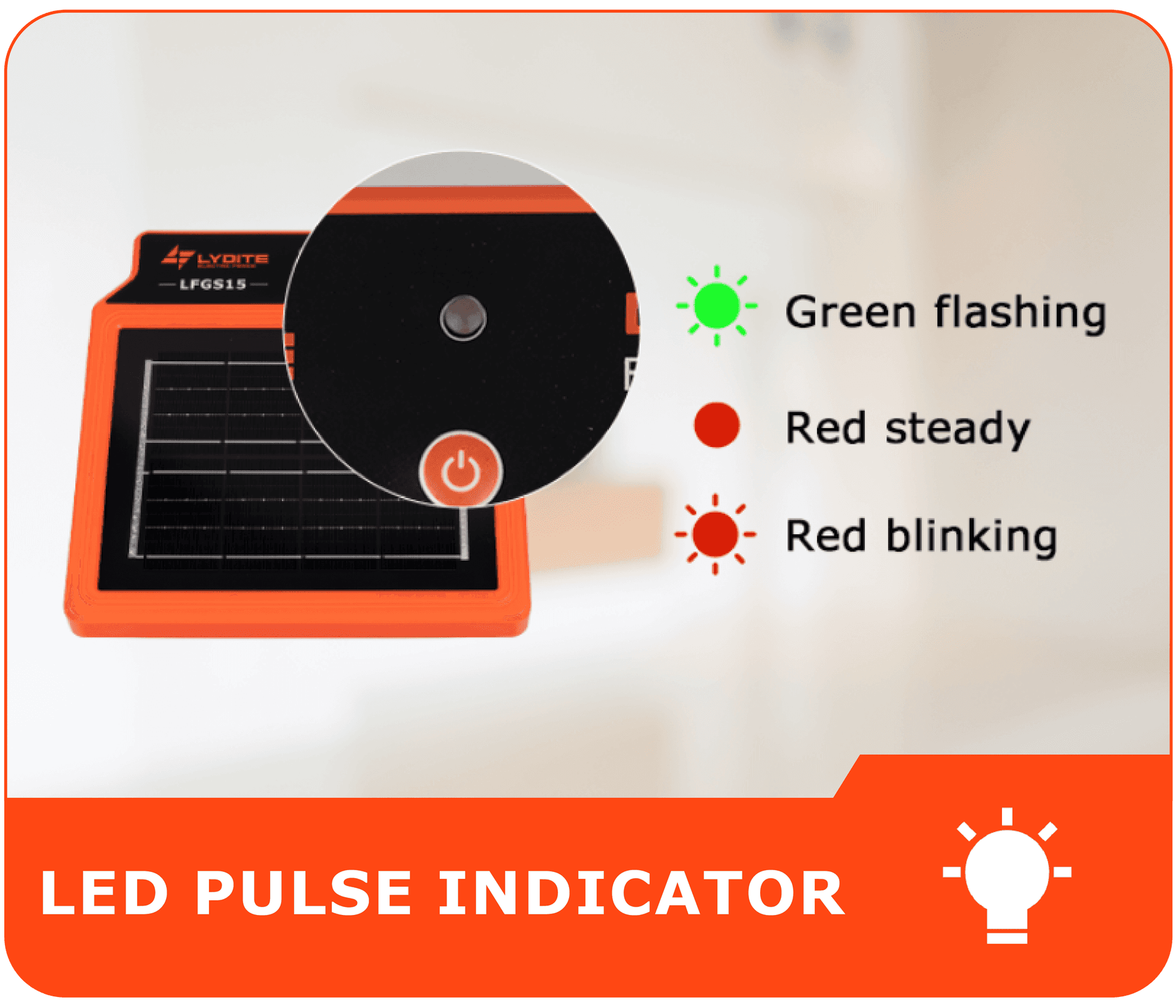

Green flashing = working normally. Red steady = low battery. Red blinking = temperature protection (auto-recovery when cooled).

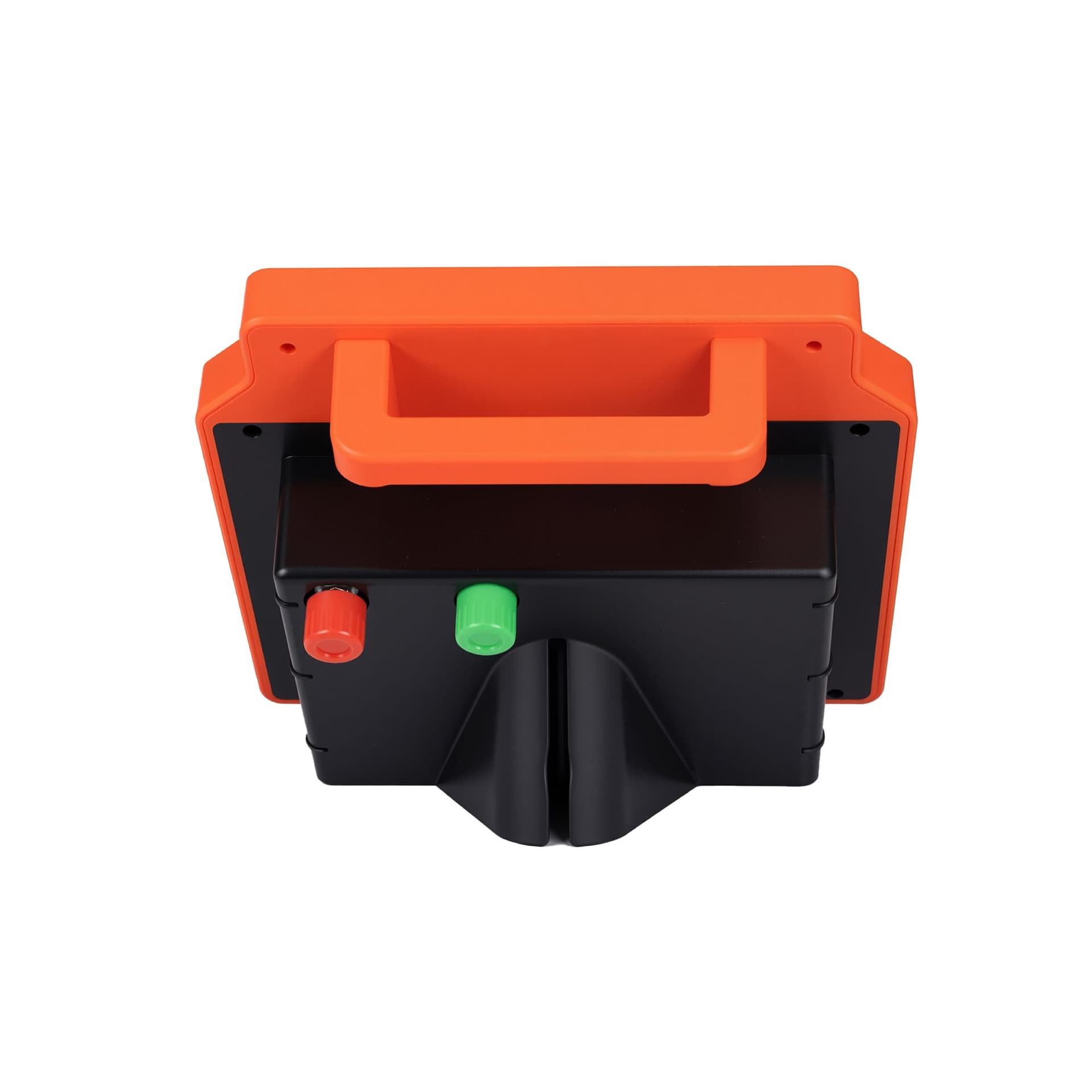

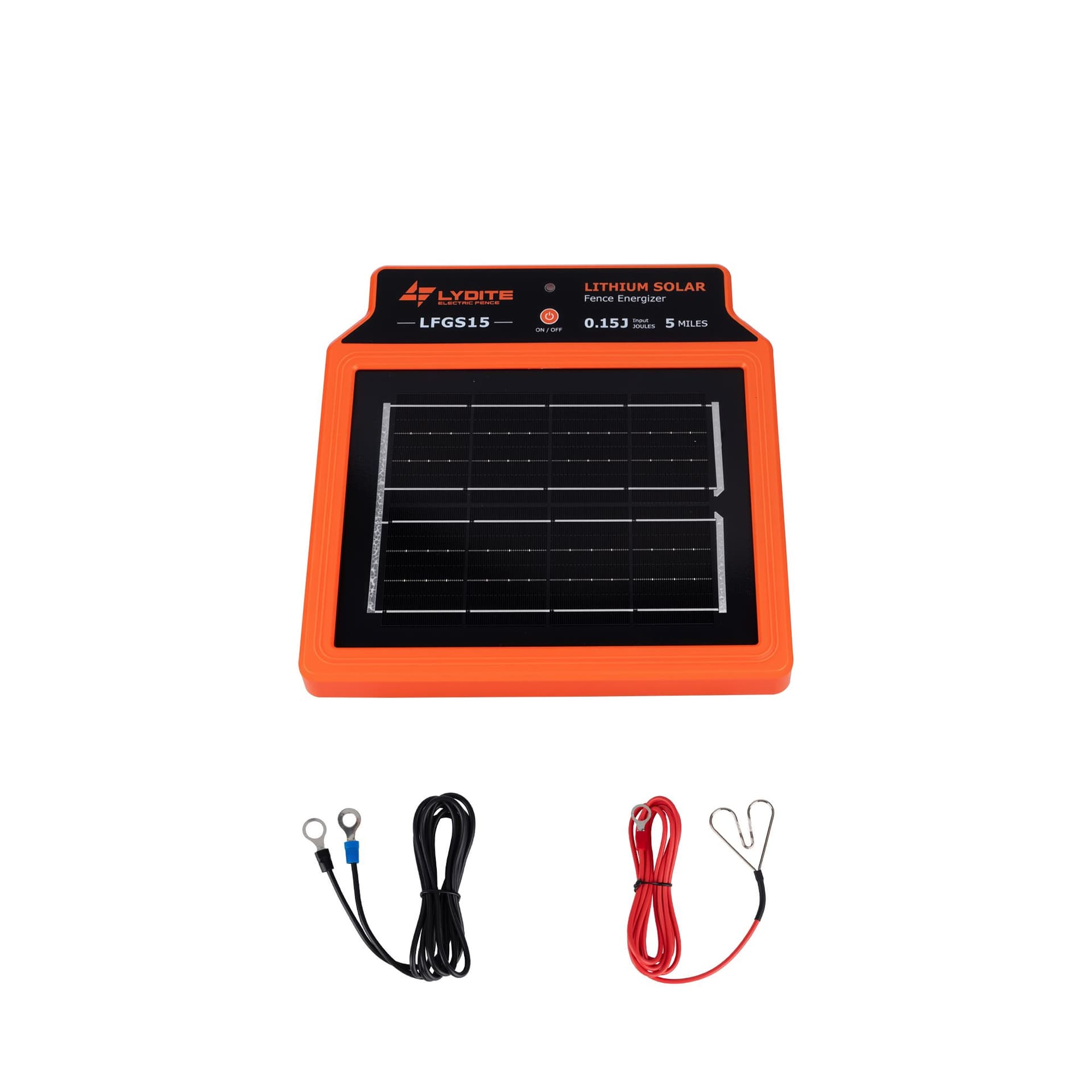

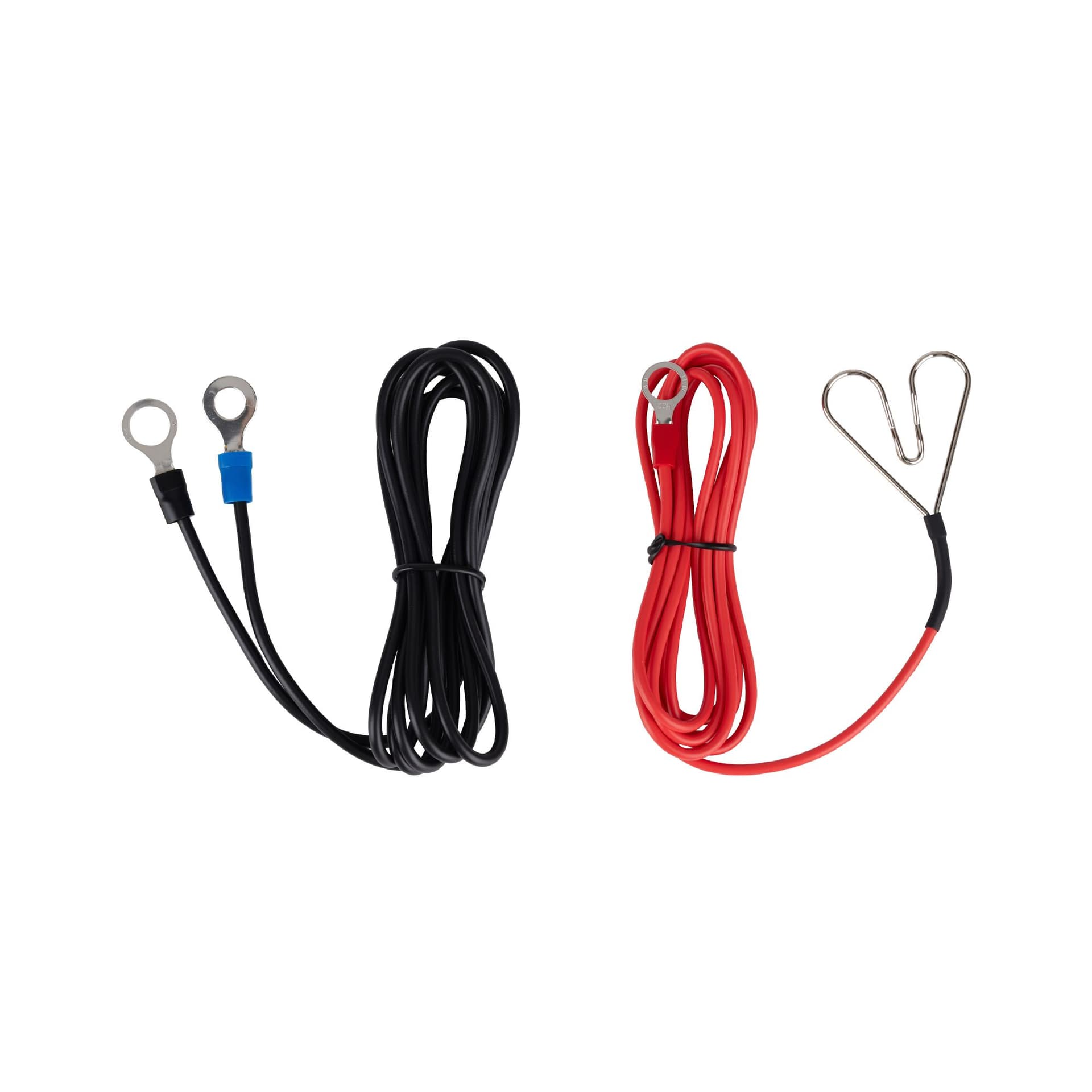

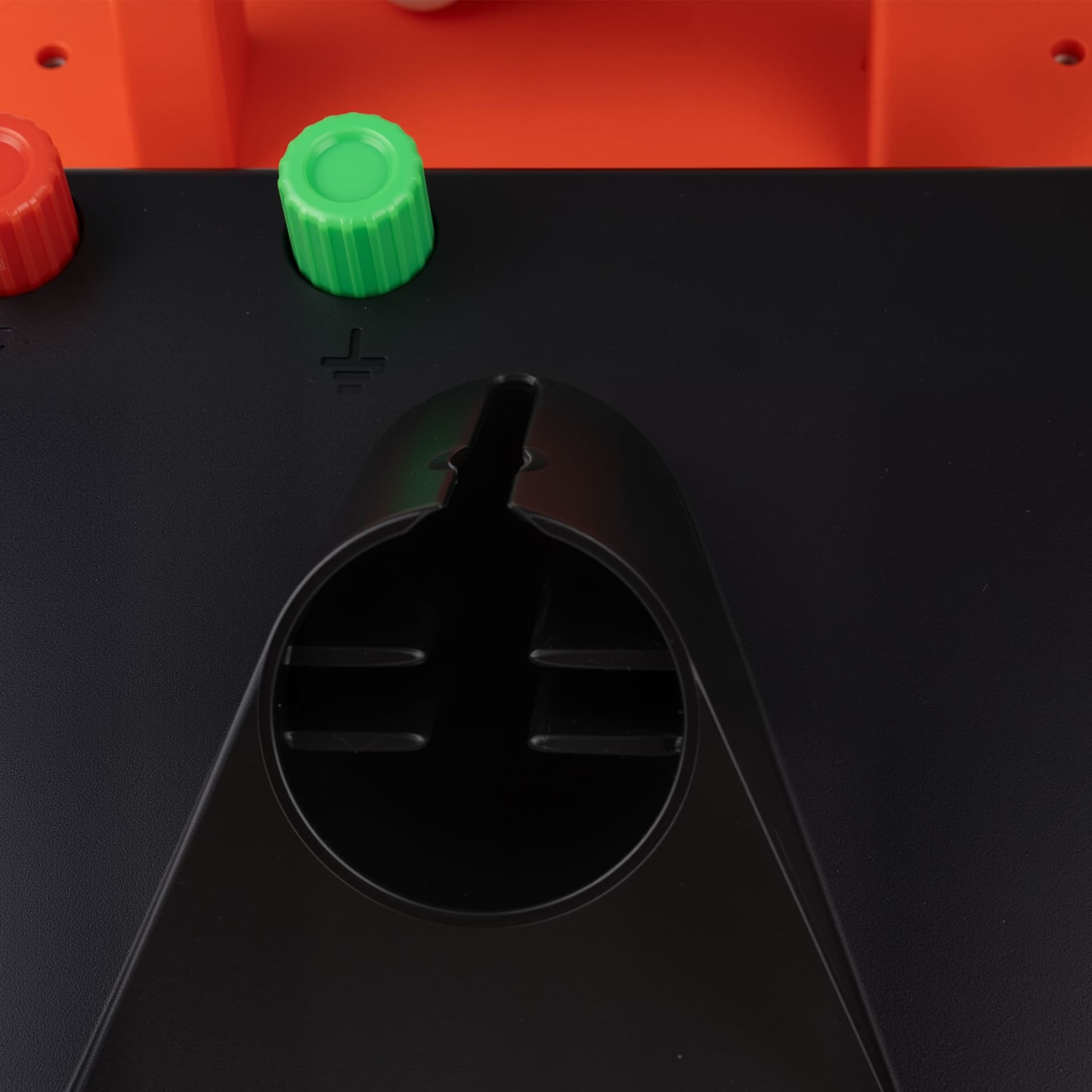

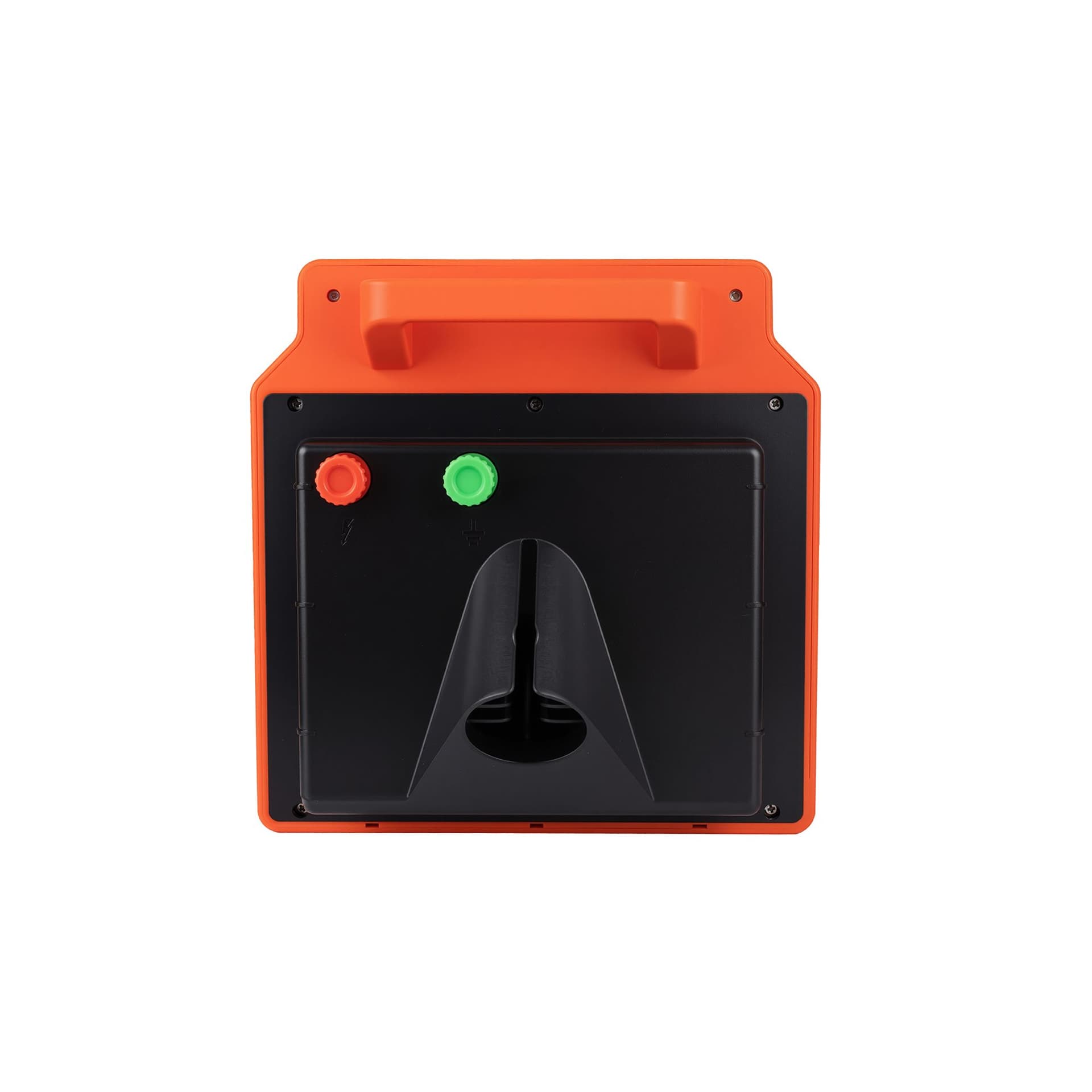

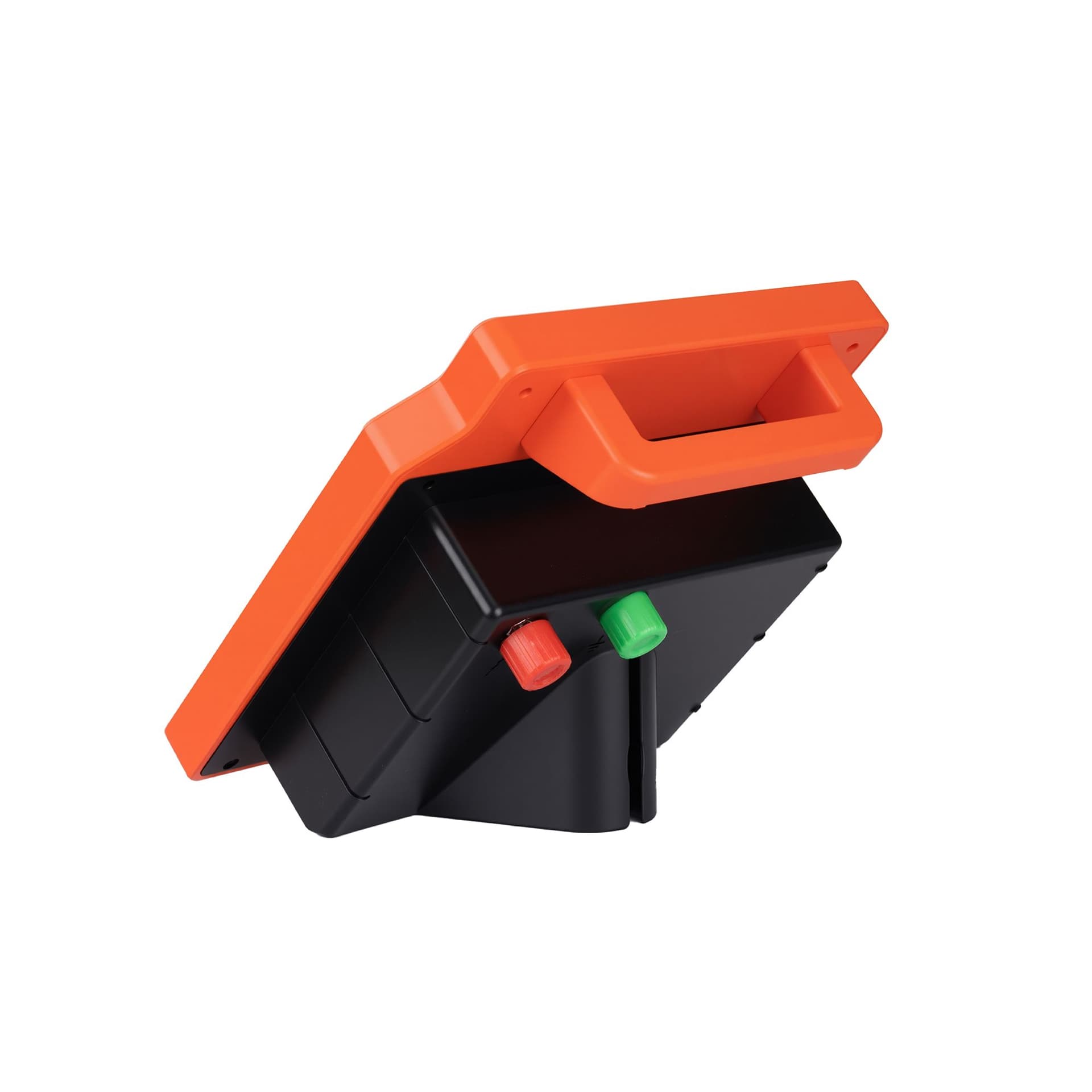

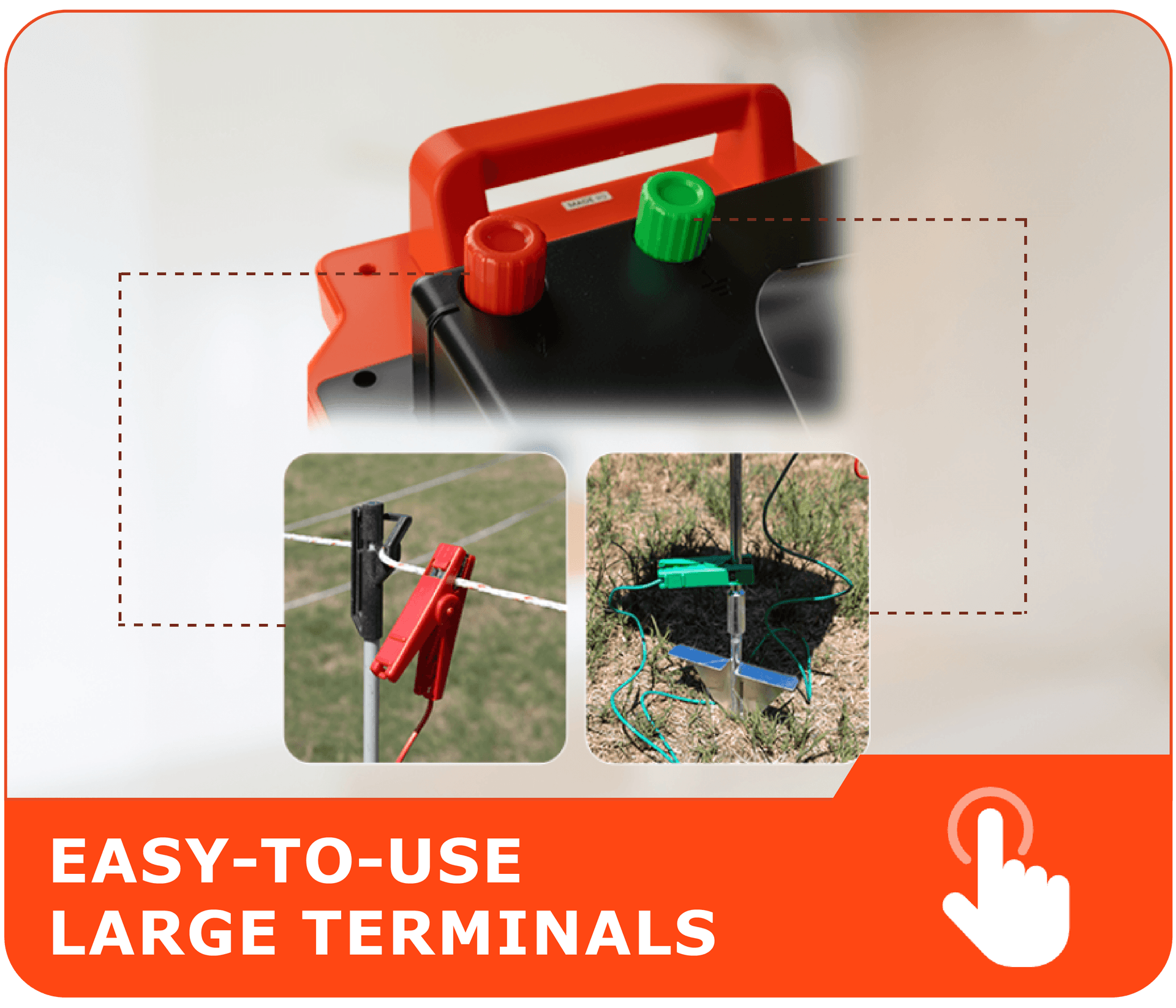

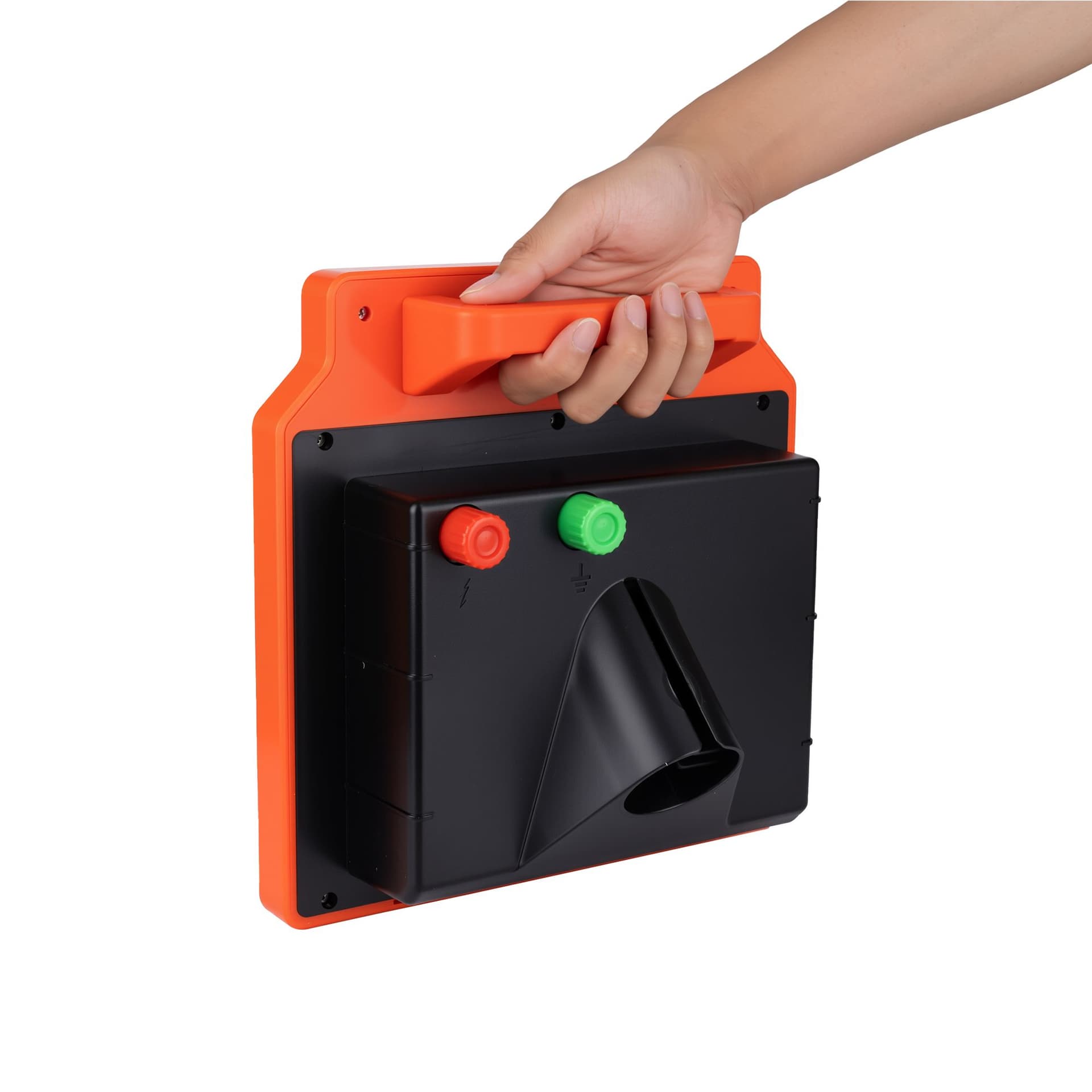

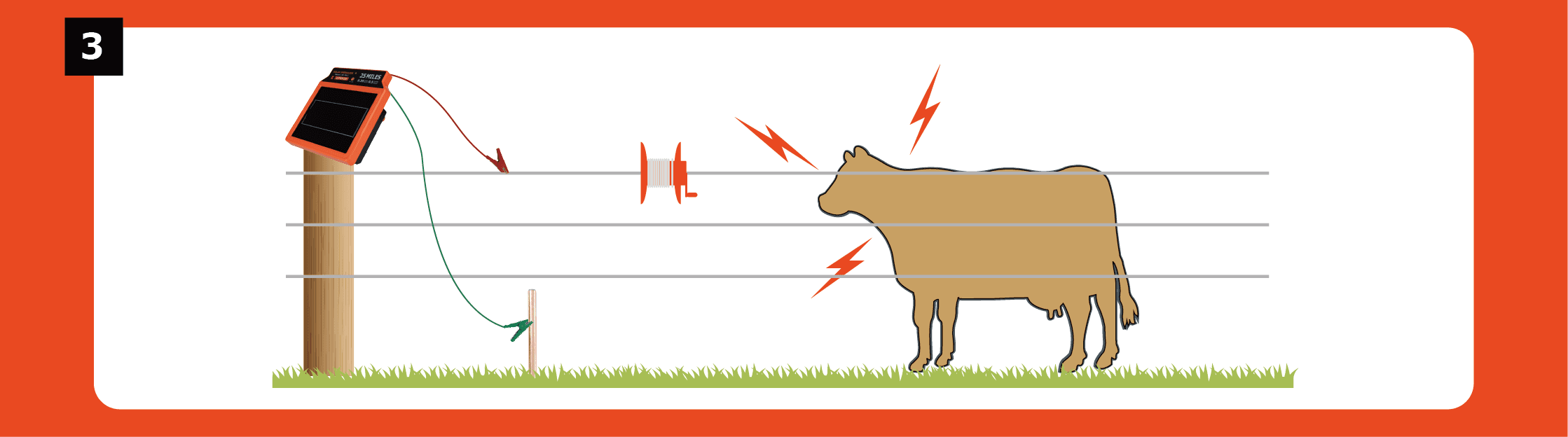

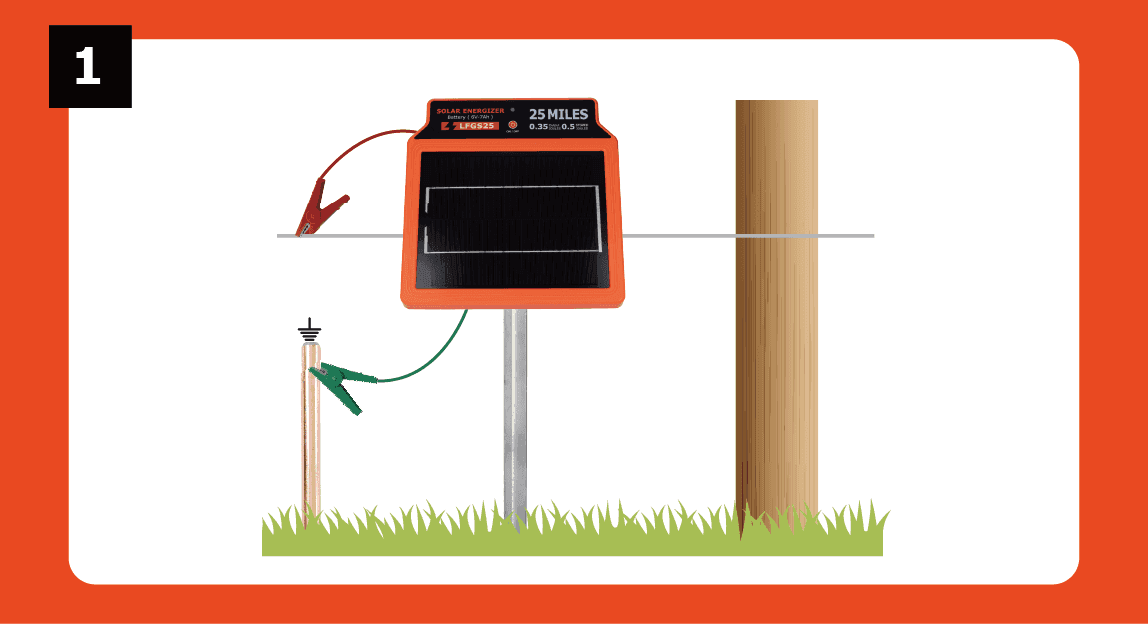

Front-mounted red & green terminals. Red to fence wire, green to ground rod (min. 60cm depth). Knob-type connection for secure installation.

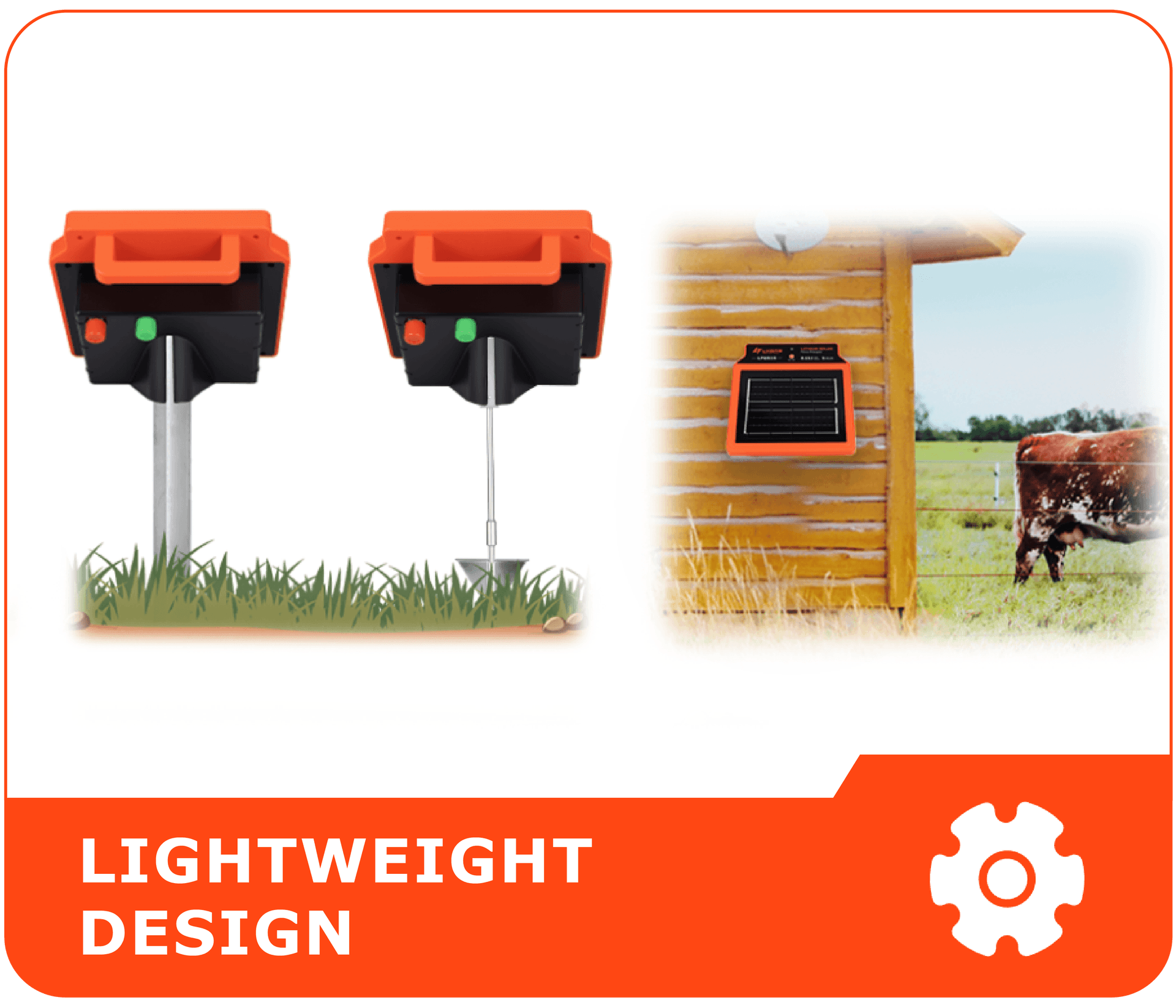

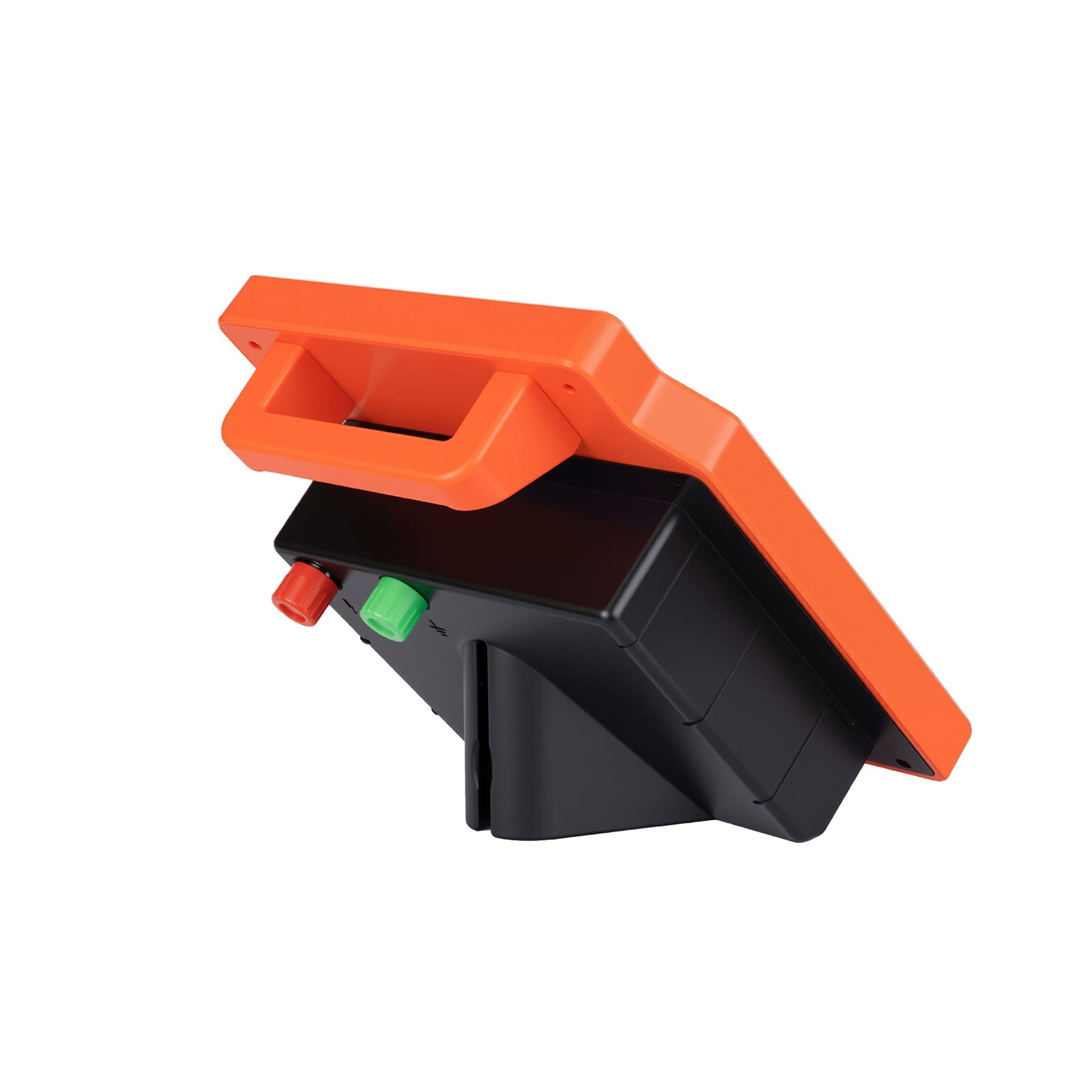

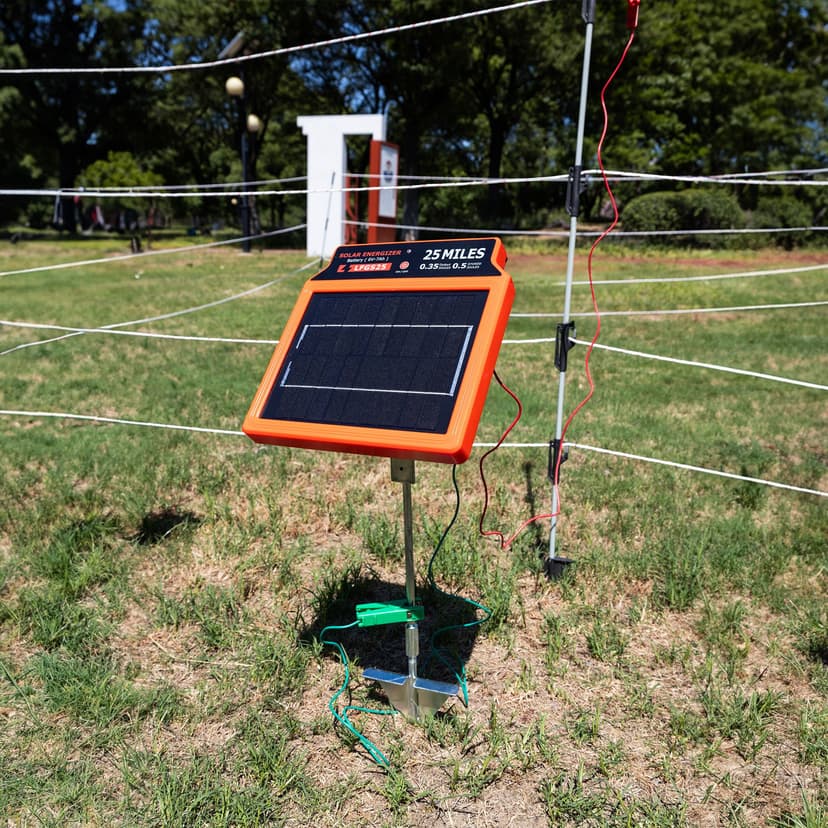

Weighs only 1.6–2.2kg depending on the model. Easily mounted on a post, wall, or bracket. Perfect for mobile or temporary fence applications.
Specification | LFGS15 | LFGS20 | LFGS25 | LFGS30 | LFGS60 | LFGS80 |
|---|---|---|---|---|---|---|
Battry Type | Lithium 3.2 v 6 Ah | Lithium 3.2 v 6 Ah | 6 V Battery | Lithium 3.2 v 12 Ah | Lithium 3.2 v 12 Ah | Lithium 3.2 v 24 Ah |
Output Voltage (no load) | 9.3 KV | 9.2 KV | 7.2 KV | 9.3 KV | 9.0 KV | 9.0 KV |
Stored Energy | 0.15 J | 0.22 J | 0.5 J | 0.3 J | 0.6 J | 0.8 J |
Average Current (day) | 56 mA | 67 mA | 80 mA | 100 mA | 300 mA | 400 mA |
Peak Current | 310 mA | 326 mA | 300 mA | 275 mA | 350 mA | 450 mA |

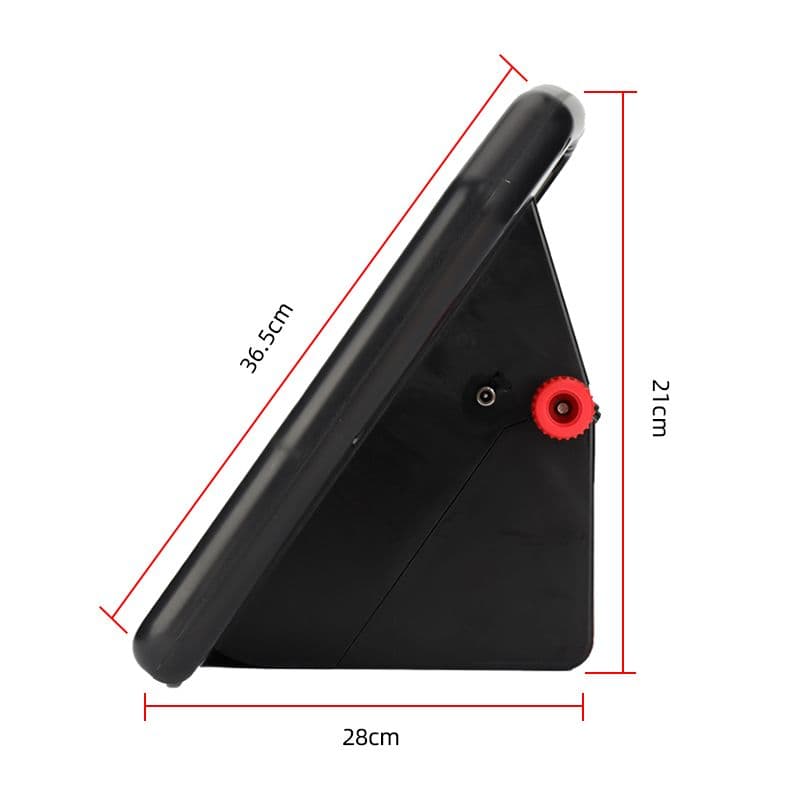

Dimensions (H*W*D) | 260*255*125 mm | 260*255*125 mm | 260*255*125 mm | 260*255*125 mm | 260*255*125 mm | 260*255*125 mm |
Weight(N.W.) | 1.6 KG | 1.6 KG | 2.6 KG | 1.75 KG | 1.85 KG | 2.2 KG |
Multiwire Distance | 5 Miles | 12 Miles | 25 Miles | 20 Miles | 27 Miles | 30 Miles |
