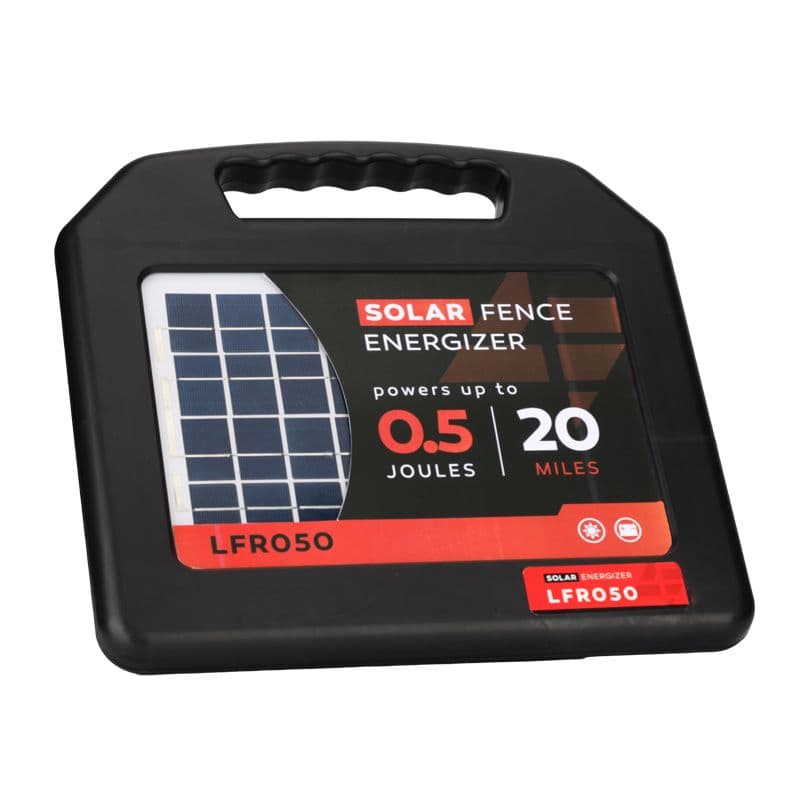

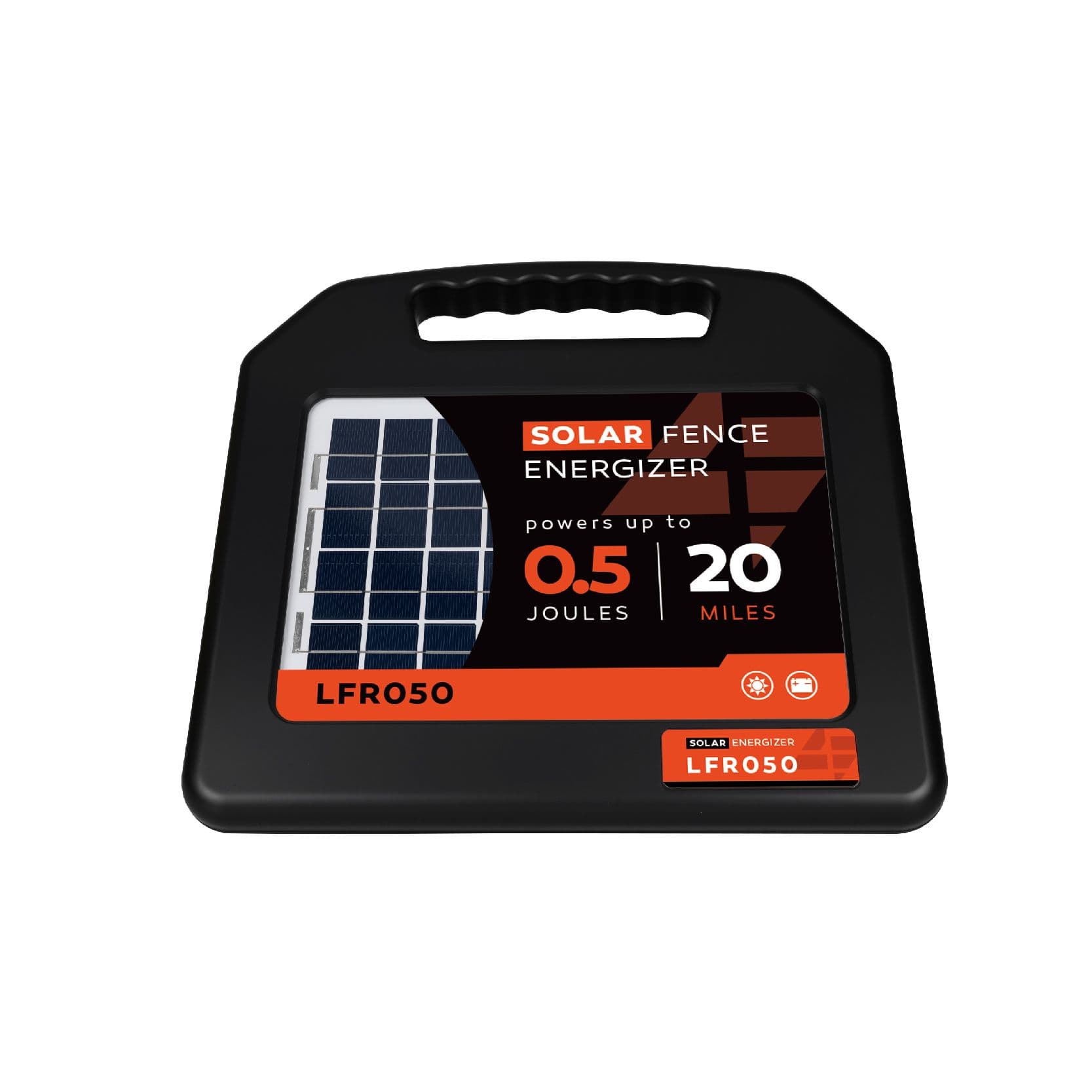

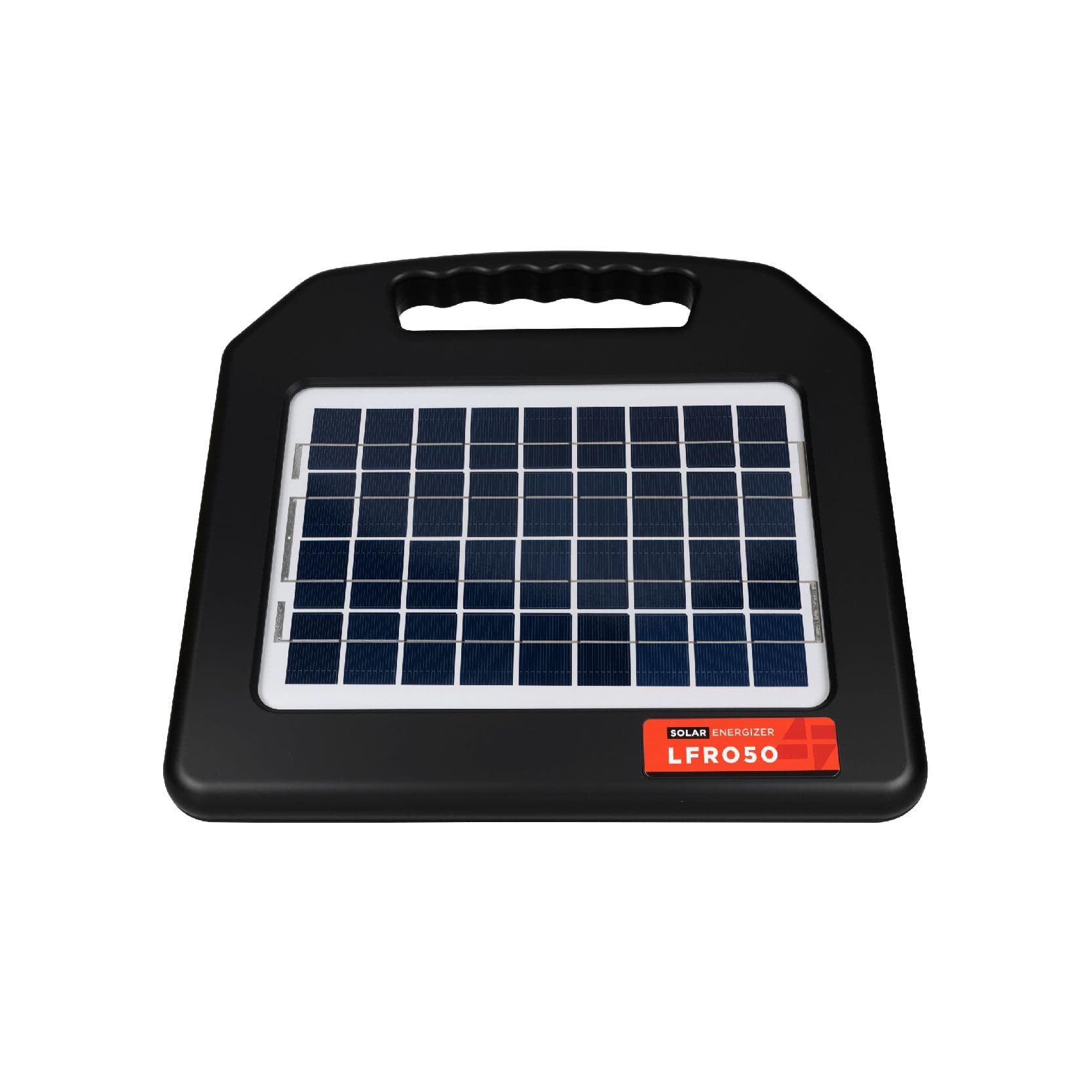

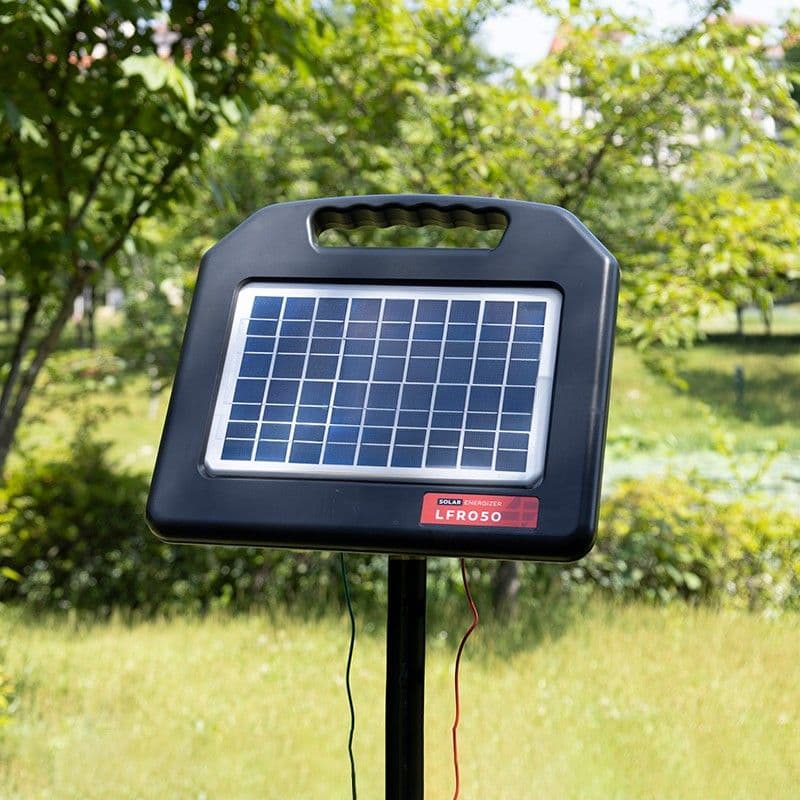

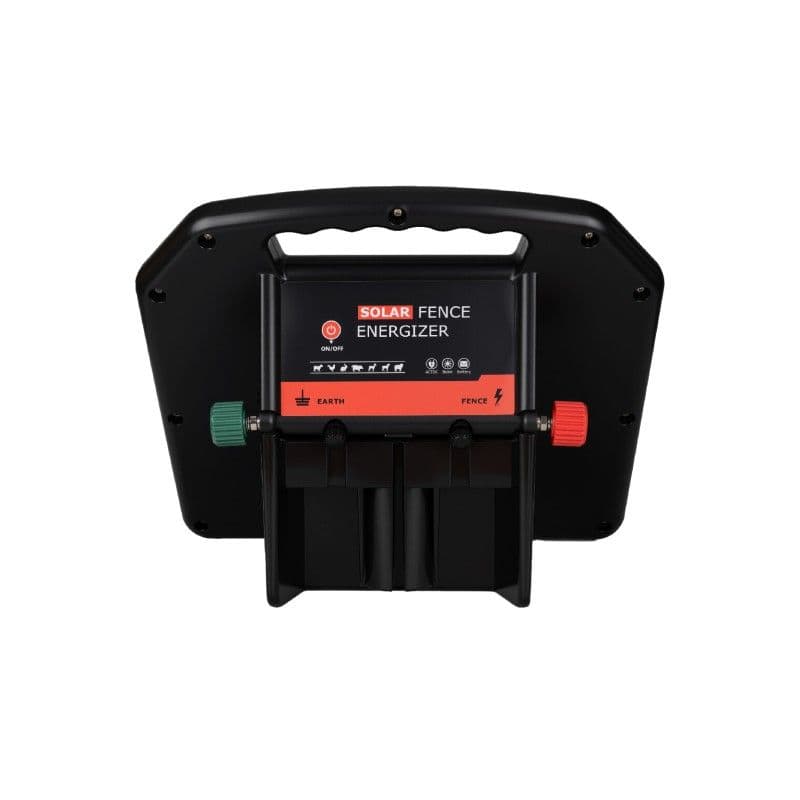

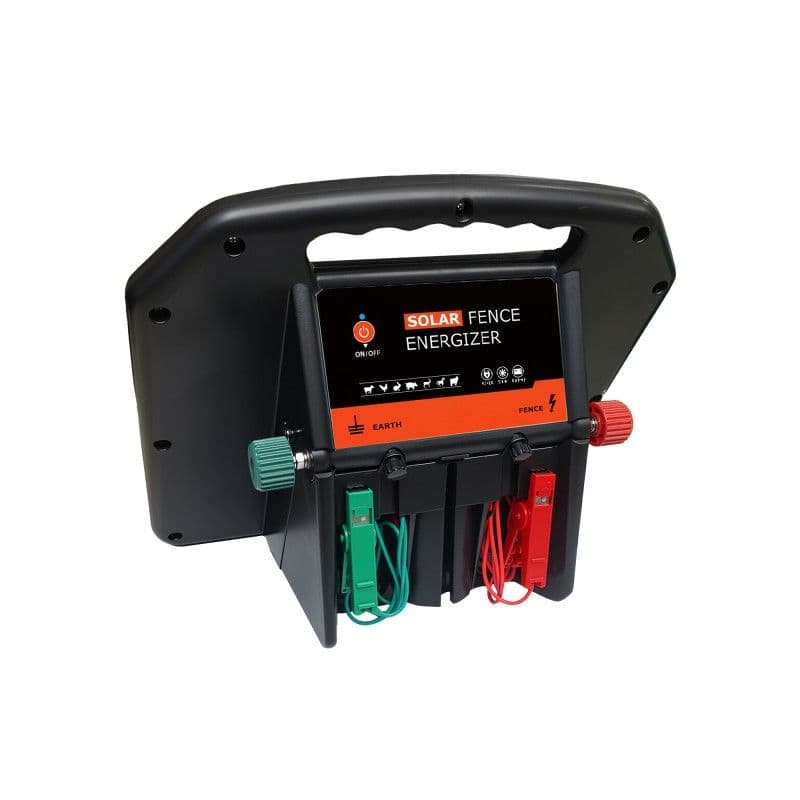

Lydite® Energizer “LFR050”, 0.5J 20Miles Solar Fence Energizer

Weight 2.55 kg

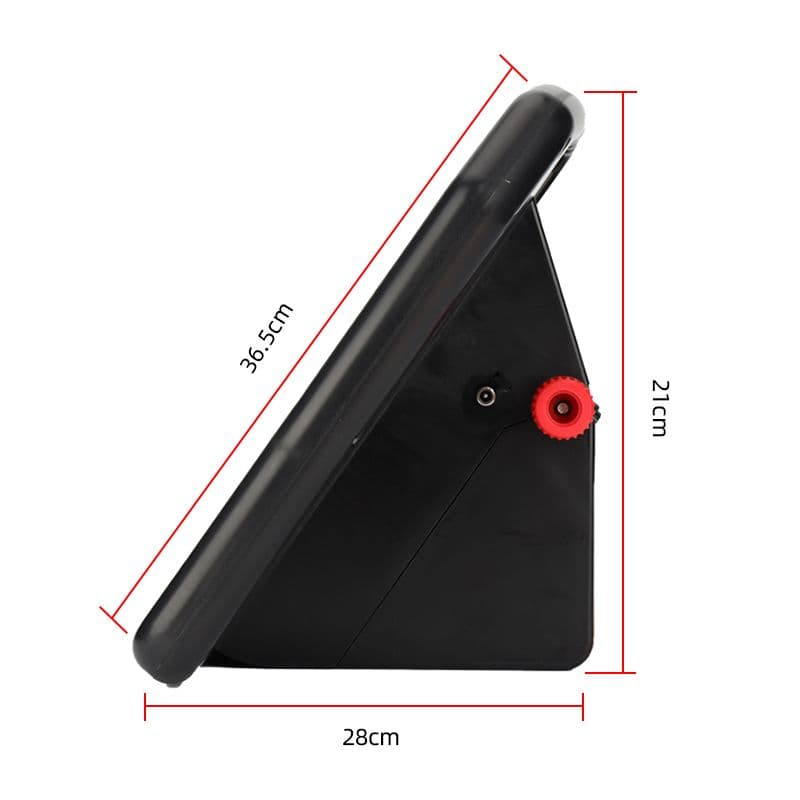

Dimensions 36.5 × 21 × 28 cm
Model Number


Frame Finishing

Pvc Coated

Power output at 500 ohms

0.5 J

Delivered power vacuum

0.63 joules

Effective length


Voltage Vacuum

10KV Max


47 mA

Lydite® Farming

Ranch Tool Experts Arount You


Any power source. Anywhere.

Can be used in 110V-240V, battery or solar power applications, providing convenient, versatile livestock control.

Warranty information

1 year Warranty

Technical Specifications

Distance powers: 20 miles

Distance powers: 50Acres

Consumption: 47mA

Input Voltage:12V/110V-240V

Maximum stored energy:0.63Joule

Maximum output energy:0.5Joule

Output Voltage @ 500 Ω:5500 V

Physical details:

Weight: 3.05KG

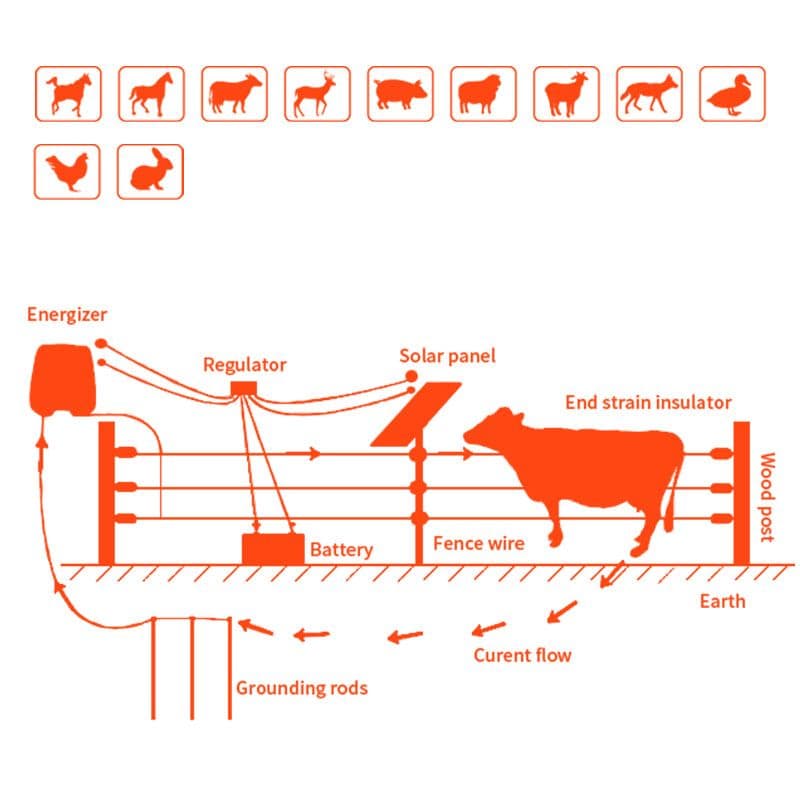

Watch this video to see how you can install the LFR050  using a solar panel setup!

Recommended for:


  • 0.5 J maximum output energy (0.63 J stored energy)
  • Fence up to 20 miles without vegetation
  • Can be used for varieties of animals
  • Flame-retardant ABS
  • Ati-UV


here is how you benefit from our energizer:



Column 1 heading Column 2 heading Column 3 heading
Row 1 col 1 content Row 1 col 2 content Row 1 col 3 content
Row 2 col 1 content Row 2 col 2 content Row 2 col 3 content


Fence Energizer User Manual Guide
